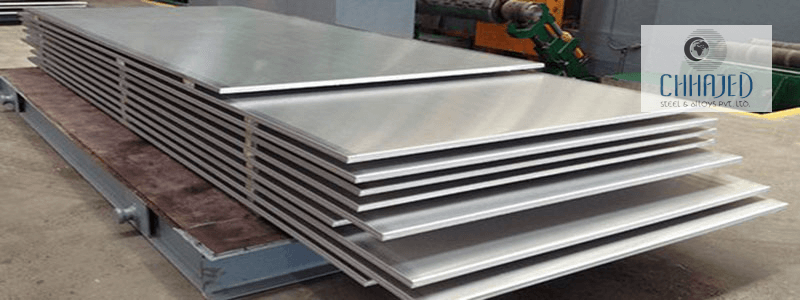

Stainless Steel 904L Sheets & Plates
Stainless Steel 904L Round Disks in Mumbai, Stainless Steel 904L Blank Manufacturers in Mumbai, Stainless Steel 904L Mesh Discs Suppliers in Mumbai, Stainless Steel 904L Cold Rolled Plates Exporters in Mumbai, Stainless Steel 904L 8K Mirror finish Sheets Stockists in Mumbai.
Stainless Steel 904L Sheet is a super austenitic stainless steel that is created for moderate to high corrosion resistance in a wide range of environments. The mixture of chromium and nickel content, with the additions of molybdenum and copper, provides excellent corrosion resistance. Due to nickel 25% and molybdenum 4.5%, B625 UNS N08904 provides good chloride stress corrosion cracking resistance, pitting, and general corrosion resistance which is superior to 904L and 317L. It is developed to out-break environments containing dilute sulphuric acids. Stainless Steel 904L plate has good resistance to inorganic acids such as hot phosphoric acid. It can be easily welded and processed by a standard fabrication process.
Stainless steel 904l plate is quite ductile and can be easily formed. The addition of molybdenum and nitrogen provides more powerful processing equipment and it may be necessary when compared to the standard 304/304L grades. A240 type 904l has excellent resistance to warm seawater and chloride attack. The high resistance of it is against stress corrosion cracking and it is due to the presence of high amounts of nickel in its composition however, the structural stability of this grade collapses at high temperatures, particularly above 400°C. A240 UNS N08904 material can be solution heat-treated at 1090 to 1175°C by following by rapid cooling method. Thermal treatment is suitable for hardening it. 1.4539sheet major applications are oil refinery equipment, Pulp, and paper processing industries, gas scrubbing plants, etc.
All Chhajed products are manufactured under strict process control and monitored throughout the production process. They go through several checks to ensure that the product delivered is of finest quality!
Specification Schedule of Stainless Steel 904L Sheets & Plates
| Stainless Steel 904l Grade Plate Thickness |
0.3 to 1200 mm or as required |
| SS 904l Grade Plate Process |
Hot/ Cold Rolled |
| Type |
Plate, Sheet, Strip, Coils, Foils, Flats, Clad Plate, Plain Sheet, Rolling Sheet, Rolling Plate, Flat Shim, Flat Sheet, Shim Sheet, Rolls, Blank (Circle), sheared, annealed, soft annealed, descaled, tread plate, Checker Plate |
| Stainless Steel 904L Plate Length |
0-12mm or as required |
| 904l SS Plate Width |
0-2500mm or as required |
| Test |
TUV, SGS testing, UT etc |
| AISI Stainless Steel 904L Plate surface |
No.1, No. 2D, No. 2B, BA, No.3, No.4, hairline, No.6, No.7, 2B, 2D, BA NO(8), Hot rolled plate (HR), SATIN, No.1 finish hot rolled, Cold rolled sheet (CR), 1D, brush, mirror etc. |
Chemical Properties of Stainless Steel 904L Sheets & Plates
| Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
N |
| 904L |
min. |
– |
– |
– |
– |
– |
19.0 |
4.00 |
23.00 |
0.10 |
| max. |
0.20 |
2.00 |
1.00 |
0.045 |
0.035 |
23.0 |
5.00 |
28.00 |
0.25 |
Mechanical Properties of Stainless Steel 904L Sheets & Plates
| Grade |
Tensile Strength (MPa) min |
Yield Strength 0.2% Proof (MPa) min |
Elongation (% in 50mm) min |
Hardness |
| Rockwell B (HR B) max |
Brinell (HB) max |
| 904L |
490 |
220 |
35 |
70-90 typical |
– |
Equivalent Standard of Stainless Steel 904L Sheets & Plates
| Grade |
UNS No |
Old British |
Euronorm |
Swedish SS |
Japanese JIS |
| BS |
En |
No |
Name |
| 904L |
N08904 |
904S13 |
X1NiCrMoCu25-20-5 |
1.4539 |
– |
– |
SUS 904L |
Basic Type of Stainless Steel Sheets & Plates
Cold Roll AISI 904L Mirror finishing SS Sheet
4x8 Stainless Steel 904L Sheet
10mm Thick Stainless Steel 904L Plate
0.35mm Cold Rolled BA Mirror Secondary Stainless Steel 904L coil
Cold Rolled SS 904L 1.0mm thick plate
904L NO.8 Mirror Stainless Steel Sheet
904L Hot Rolled Stainless Steel Plate
904L 0.8mm Double Color Mirror Stamped Finish SS Sheets
3mm Thick Stainless Steel 904L Sheet
904L Mirror 2B finish 0.6mm 0.5mm SS Sheet
Hot Rolled 2B Finish 6mm Grade Stainless Steel 904L Sheet
4mm Cold Rolled Stainless Steel 904L Sheet
