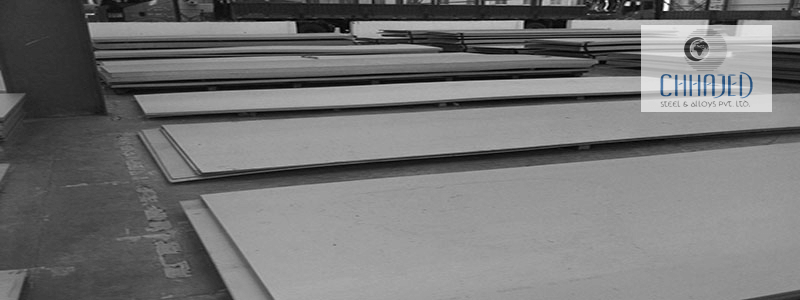

Duplex 2205 Sheets & Plates
Duplex 2205 Sheets & Plates Manufacturers in Mumbai, Duplex 2205 Sheets & Plates Suppliers in Mumbai, Duplex 2205 Sheets & Plates Stockists in Mumbai, Duplex 2205 Sheets & Plates Exporters in Mumbai
Duplex 2205 Plate at temperatures above 300°C, the brittle micro-constituents of it undergo precipitation, and at temperatures below -50°C the micro-constituents undergo ductile-to-brittle transition; hence this it is not suitable for use the above temperatures, they are used in applications that require good corrosion resistance and strength. Duplex Steel Plates are an appropriate replacement to austenitic grades, especially in marine environments and premature failure environments and they are resistant to chloride stress corrosion cracking at 150°C temperature. Duplex 2205 stainless steel sheet withstands localized corrosion types like intergranular, pitting, and crevice and is excellent corrosion resistance, much higher than that of grade 316.
Duplex Stainless Steel Sheet is most standard welding methods is used for duplex steel sheet except welding without filler metals, with low due to its high strength and its cutting speeds are almost 20% lower than that of 304 stainless steel. Its heat input must be maintained at a low level, and the use of pre or post-heat must be avoided. The advantage to choose a Duplex 2205 stainless steel plate manufacturer is to get a 10% lower price to compare to the stockiest and supplier in Mumbai and Prime quality material with manufacturer Mill test Certificate.
All Chhajed products are manufactured under strict process control and monitored throughout the production process. They go through several checks to ensure that the product delivered is of finest quality!
Specification Schedule of Duplex 2205 Sheets & Plates
| Material |
Duplex 2205 Sheet and Plate |
| Duplex 2205 Sheet & Plate Specification |
ASTM A240/ SA240 |
| Duplex 2205 Plate Tolerances of Width and thickness |
- EN 10258
- EN 10151 Duplex 2205 strip for springs
- EN 10088 Duplex 2205 strip (general)
|
| Standard Duplex 2205 Plate & Sheet Sizes |
1000 x 2000 MM, 1220 x 2440 MM, 1500 x 3000 MM, 2000 x 2000 MM, 2000 x 4000 MM |
| SA-240 Duplex 2205 Plate & Sheet Thickness |
0.1 MM - 100 MM Thick |
| Width |
10 To 2500 MM |
| Duplex SA 240 Type 2205 Plate & Sheet Length |
2m, 2.44m, 3m, or as required |
| SA 240 GR Duplex 2205 Plate & Sheet Finish |
Hot rolled plate (HR), Cold rolled sheet (CR), 2B, BA NO(8), SATIN (Met with Plastic Coated), No.1 finish hot rolled Duplex 2205 Plate, 1D, 2B, 2D, No.4, BA, 8K, satin, hairline, brush, mirror etc. |
| Duplex SA 240 TP 2205 Plate & Sheet Hardness |
Quarter Hard, Half Hard, Soft, Hard, Spring Hard duplex plate suppliers |
| Duplex Stock available in form of |
Plate, Sheet, Coils, Foils, Shim Sheet, Rolls, Strip, Flats, Clad Plate, Plain Sheet, Rolling Sheet, Rolling Plate, Flat Shim, Flat Sheet, Blank (Circle), sheared, annealed, soft annealed, descaled, tread plate, Checker Plate Manufacturer and duplex 2205 plate suppliers |
| Profiling of Duplex 2205 Plate |
To provide a full profiling service in India we use numerous profiling methods including:
- Laser Plate Cutting
- Plasma Plate Cutting
- Oxy-propane Flame Cutting
|
| Duplex 2205 Plasma profiles |
As per customer's drawings |
| Value added services for Duplex 2205 Sheet & Plate |
Waterjet cutting, Plasma cutting, Laser cutting, Bending and mechanical processing, edge preparation, welding, sawing and shearing. |
| Value added services for Duplex 2205 Coil |
- Cut-to-length
- Polishing
- Slitting
- Blanking
|
| Specialized Supplier |
- ASTM A240 Type Duplex 2205 Plate: material 3/16" [5.00 mm] and over in thickness and over 10" [250 mm] in width;
- ASTM A240 Grade Duplex 2205 Sheet: material under 3/16" [5.00 mm] in thickness and 24" [600 mm] and over in width;
- ASTM A240 Type Duplex 2205 Clad plate: ASTM A240 Type Duplex 2205 Clad plate is a composite steel plate made by bonding ASTM A240 Type Duplex 2205 plate, etc.
- ASTM A240 Type Duplex 2205 Strip: cold-rolled material under 3/16" [5.00 mm] in thickness and under 24" [600 mm] in width.
|
Chemical Properties of Duplex 2205 Sheets & Plates
| Duplex 2205 |
C |
Mn |
Cr |
Fe |
N |
Si |
P |
S |
Mo |
Ni |
| ASTM A276 S31803 |
0.030 max |
2.00 max |
22.0 – 23.0 |
63.72 min |
0.14 – 0.20 |
1.00 max |
0.030 max |
0.020 max |
3.0 – 3.5 |
4.50 – 6.50 |
| ASTM A276 S32205 |
0.030 max |
2.00 max |
21.0 – 23.0 |
63.54 min |
0.8 – 0.20 |
1.00 max |
0.030 max |
0.020 max |
2.5 – 3.5 |
4.50 – 6.50 |
Mechanical Properties of Duplex 2205 Sheets & Plates
| Density |
7.8 g/cm3 |
| Tensile Strength (PSI/MPa) |
Psi - 90000 , MPa - 620 |
| Yield Strength (PSI/MPa) (0.2%Offset) |
Psi - 65000 , MPa - 450 |
| Melting Range |
1440 °C (2625 °F) |
| Elongation % |
30 % |
Equivalent Standard of Duplex 2205 Sheets & Plates
| GRADE |
WERKSTOFF NR./ DIN |
UNS |
| Duplex Steel 2205 |
1.4462 |
S31803 / S32205 |
