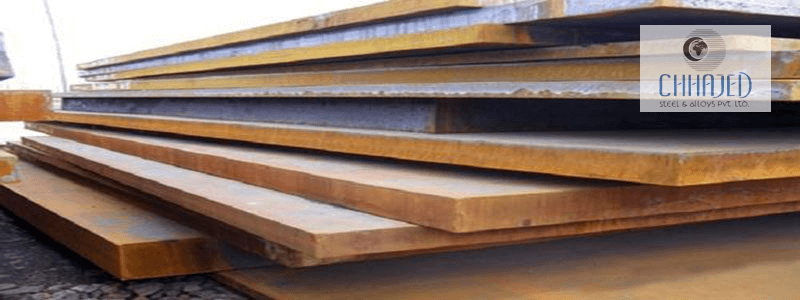

Corten Steel Sheets & Plates
Corten Steel Sheets & Plates Manufacturers in Mumbai, Corten Steel Sheets & Plates Suppliers in Mumbai, Corten Steel Sheets & Plates Stockists in Mumbai, Corten Steel Sheets & Plates Exporters in Mumbai
Corten Steel Plates is been fabricated by using high quality material and we constantly work to improve the fabrication process in order to furnish a high class product. When Corten Steel Sheet is exposed to the elements it's chemical composition promotes the early formation of an adhering protective layer of rust. It is copper chromium alloy steel. They displays a greater level of resistance to atmospheric weathering as compared to other unalloyed steels. Astm a588 weathering steel sheet is use in welded bridges and other structures where savings in weight or added durability is important along with the longer life cycle due to its corrosion resistant properties.
ASTM A242 Corten Plate, when properly exposed to the atmosphere, A242 is suitable for many applications in the unpainted condition. They are atmospheric corrosion resistance is substantially better than that of carbon steels such as A36 and A572-50 with or without copper addition. Astm a588 Steel has has minimum yield strength of 50ksi and a minimum. They have high strength low-alloy structural steel with improved atmospheric corrosion resistance for structural steel shapes such as angles, channel and beams, as well as steel plate and bars.
A588 grade a can be delivered in a condition such as hot rolled, cold rolled, normalized, quenched, tempering, thermal mechanical control process (TMCP), HIC test. Density of 3mm Corten Steel Sheet is 7.85 g/cm3, or 23.55 kg per square meter of material. Astm a588 grade a weathering steel plate has been designed to provide a high resistance to atmospheric corrosion, especially in urban environment. It has 345Mpa minimum yield point to 100mm thickness. It is suitable for many applications in the bare condition when it is properly exposed to the atmosphere. Corten b steel has been designed to provide a high resistance to atmospheric corrosion, especial in urban environment. It is a weather resistant steel is better suitable for load bearing and heavy structures.
All Chhajed products are manufactured under strict process control and monitored throughout the production process. They go through several checks to ensure that the product delivered is of finest quality!
Specification Schedule of Corten Steel Sheets & Plates
Forms |
steel plates, sheet, mild steel sheet, carbon steel Plates |
ASTM Standard |
ASTM A588, ASTM A242 |
Material Chart |
Corten A ,Corten B , S355J0WP ,S355J0W, S355J2W , A588 Grade A, B, C , A242 Type 1 , SA588 Gr A, B, C |
Thickness in Milimeter |
0.3-500 milimeter |
Width |
10-3500 milimeter |
Length in meter |
2,2.44,3,6,8,12 meter,or rolled,etc |
Surface |
PE coated, Black painted, anti rust varnished, Galvanized, color coated anti rust oiled, checkered,etc |
Chemical Properties of Corten Steel Sheets & Plates
|
Corten – A Plates |
ASTM 588 GR A |
ASTM 242 TYPE -1 |
IRSM 41 -97 |
Carbon, Max |
0.12 |
0.19 |
0.15 |
0.10 |
Manganese |
0.20-50 |
0.80-1.25 |
1.00 |
0.25-0.45 |
Phosphorus |
0.07-0.15 |
0.04 |
0.15 |
0.07-0.11 |
Sulphur, max |
0.030 |
0.05 |
0.05 |
0.030 |
Silicon |
0.25-0.75 |
0.30-0.65 |
0.25-0.40 |
0.28-0.72 |
Nickel, max |
0.65 |
0.40 |
– |
0.20-0.49 |
Chromium |
0.50-1.25 |
0.40-065 |
– |
0.30-0.50 |
Molybdenum, max |
– |
– |
– |
– |
Copper |
0.25-0.55 |
0.25-0.40 |
0.20 min |
0.30-0.39 |
Vanadium |
– |
0.02-0.10 |
– |
0.050 |
Aluminimum |
– |
… |
– |
0.030 |
Mechanical Properties of Corten Steel Sheets & Plates
|
Tensile Strength |
Min. Yield Point |
Elongation |
COR-TEN A |
[470 – 630 MPa] |
[355 MPa] |
20 % min |
ASTM 588 GR. A |
[485 MPa] |
[345 MPa] |
21% min |
ASTM 242 TYPE -1 |
[480 MPa] |
[345 MPa] |
16% min |
Equivalent Standard of Corten Steel Sheets & Plates
Material # |
EN 10155 |
SEW 087 |
NFA 35-502 |
UNI |
BS 4360 |
ASTM |
JIS G3114 |
1.8961 |
S235J2W |
WTSt 37-3 |
E 24 W 4 |
Fe 360 DK 1 |
- |
- |
- |
1.8945 |
S355J0WP |
E 36 WA 3 |
Fe 510 C1K1 |
WR 50 A |
- |
- |
- |
1.8946 |
S355J2WP |
- |
E 36 WA 4 |
Fe 510 D1K1 |
- |
A 242 Type 1 |
- |
1.8959 |
S355J0W |
- |
E 36 WB 3 |
Fe 510 C2K1 |
WR 50 B |
A 588 – A 242 Gr. 1 |
SMA 50 AW |
1.8963 |
S355J2G1W |
WTSt 52-3 |
- |
Fe 510 D2K1 |
WR 50 C |
A 588 Gr. A |
to |
1.8965 |
S355J2G2W |
- |
- |
- |
- |
- |
SMA 50 CP |
1.8966 |
S355K2G1W |
- |
E 36 WB 4 |
- |
- |
A 709 Gr. 50 W |
- |
1.8967 |
S355K2G2W |
- |
- |
- |
- |
- |
- |
Basic Type of Corten Steel Sheets & Plates
ASTM A588 Corten Steel Plates
ASTM A242 Corten Steel Sheet
ASTM A588 Corten Steel Sheets
