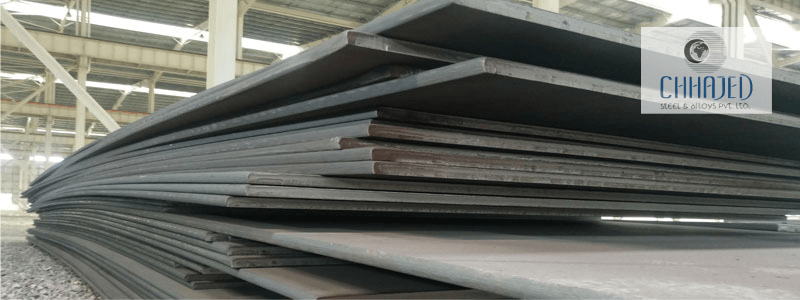

Quenched And Tempered Steel Plates
Quenched And Tempered Steel Plates Manufacturers in Mumbai, Quenched And Tempered Steel Plates Suppliers in Mumbai, Quenched And Tempered Steel Plates Stockists in Mumbai, Quenched And Tempered Steel Plates Exporters in Mumbai
Quenched and Tempered Steel Plate is the combination two processes that make it harder, tough and more weldable and ductile than ordinary carbon steel plate, as they are less brittle and more ductile without sacrificing too much hardness. The process involves heating the plate and then rapidly cooling it to set the components into place as quickly as possible. the combination two processes that make it harder, tough and more weldable and ductile than ordinary carbon steel plate.
The amount of time it is tempered is the determining factor to how much hardness is removed. A514 Steel Plate is a popular quenched and tempered grade that offers high strength, weldability and machinability, because of these properties it is typically used in applications where wear resistance and the ability to withstand high impact are important. It is available in eight grades, i.e. Gr A, Gr B, Gr E, Gr F, Gr H, Gr P, Gr Q, and Gr S.
It is heat-treated through quenching and tempering, a two-step heat treatment process that alters the grain structure of the material to increase strength, hardness and toughness. ASTM A710 Carbon Steel Plate is high-yield steel grade plate that goes through age hardening to increase its yield and tensile strength. A514 Steel Plate are also known as A514 T1 Steel Plate. Their applications include the manufacturing of construction equipment, jack-up rigs, truck frames, rail cars, piping components and shipbuilding.
All Chhajed products are manufactured under strict process control and monitored throughout the production process. They go through several checks to ensure that the product delivered is of finest quality!
Specifications of Quenched And Tempered Steel Plates
| Grade | A514/ A710 |
|---|---|
| Plate Width | 48" - 120" |
| Plate Length | 48" - 120" |
| Thickness range | 3/16" - 6" |
| Types | Coils, Plates, Sheets, Strips |
Chemical Composition of Quenched And Tempered Steel Plates
| Grade | Carbon | Nickel | CR | MO | CU | SI | FE | MN | NB | P | S |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A710 - Gr A | ≤ 0.070% | 0.70 - 1.0% | 0.60 - 0.90% | 0.15 - 0.25% | 1.0 - 1.3% | ≤ 0.40% | 95.33 - 97.13% | 0.40 - 0.70% | ≥ 0.020% | ≤ 0.025% | ≤0.025% |
Mechanical Composition of Quenched And Tempered Steel Plates
| A710 - Gr A | Imperial | Metric |
|---|---|---|
| Ultimate Tensile Strength | 71,800 psi | 495 MPa |
| Yield Strength | 60,200 psi | 415 MPa |
| Elongation at Break (in 50 mm) | 20% | 20% |
| Modulus Elasticity of Plate | 29,700 ksi | 205 GPa |
| Bulk Modulus (Typical for Steel) | 23,200 ksi | 160 GPa |
| Poissons Ratio | 0.29 | 0.29 |
| Shear Modulus (Typical for Steel) | 116,000 ksi | 80 GPa |
Basic Type of Quenched And Tempered Steel Plates
Quenched And Tempered Steel Sheets
AISI Quenched And Tempered Steel Plates
ANSI Quenched And Tempered Steel Sheets
Quenched And Tempered Steel Plates
Quenched And Tempered Steel Coil
Pure Quenched And Tempered Steel Plates
