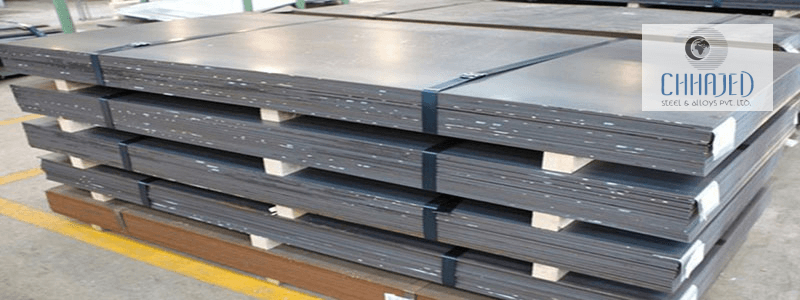

Stainless Steel 409 Sheets & Plates
Stainless Steel 409 Sheets & Plates Manufacturers in Mumbai, Stainless Steel 409 Sheets & Plates Suppliers in Mumbai, Stainless Steel 409 Sheets & Plates Stockists in Mumbai, Stainless Steel 409 Sheets & Plates Exporters in Mumbai
Stainless Steel 409 Sheet is especially useful for applications that require oxidation or corrosion protection beyond the capability of carbon sheet and coated steel. It offers economical corrosion resistance and good formability. Stainless Steel 409 Coil is readily welded by arc welding processes. When gauge thickness and weld joint geometry allow the use of gas-shielded metal-arc welding, joints having good properties are easily obtained. Stainless Steel 409 Strip offers scaling resistance at temperatures up to 675°C during continuous operation, and up to 815°C under intermittent conditions. These temperatures obtain from specific service environments. It must be preheated to a temperature of 150 to 260'C before welding.
Stainless Steel 409 Plate uses include agricultural spreaders, fuel filters, tubular manifolds, automotive and truck exhaust systems, gas turbine exhaust silencers, and heat exchangers. A240 409 provides good corrosion and oxidation resistance for automotive and non-automotive exhaust applications. A240 Type 409 is particularly suitable for parts that need more improved weldability and complex shapes. The corrosion resistance of A240 Type 409 is similar to A240 Type 410 which helps it to perform far superior to carbon steel products in most applications.
All Chhajed products are manufactured under strict process control and monitored throughout the production process. They go through several checks to ensure that the product delivered is of finest quality!
Specification Schedule of Stainless Steel 409 Sheets & Plates
Thickness
|
0.15-8.0mm
|
Width
|
1000mm,1240mm, 1250mm, 1219mm, 1500mm or cut to size
|
Length
|
2000mm-8000mm, or as required.
|
Surface
|
2B, BA, No.4, No.3, HL, No.1, 6K/8K Mirror Finish, Anti Fingerprint, Hairline Finish, No.4, Etched Finish, Embossed Finish, ect.
|
Grade
|
409/ 409L Sheet, Plate, Strip & Coil |
Color
|
Silver, Gold, Rose Gold, Bronze, Rose Red, Champagne Gold, Black Titanium, Blue, Green, Purple etc.
|
| Standard |
ASTM A240, JISG4305, JISG4304, GB/T4237, BS1449, DIN17460, GB/T8165, DIN17441 |
Chemical Properties of Stainless Steel 409 Sheets & Plates
| ASTM A240 409 Chemical Composition |
| Grade |
The Element Max (%) |
| C |
Mn |
P |
S |
Si |
Cr |
Ni |
| ASTM A240 409 |
0.030 |
1.0 |
0.040 |
0.020 |
1.0 |
10.5-11.7 |
0.50 |
| Mo |
N |
Cu |
Cb |
Ti |
W |
|
| |
0.030 |
|
|
|
|
|
| |
|
|
|
|
|
|
|
Mechanical Properties of Stainless Steel 409 Sheets & Plates
| Grade |
ASTM A240 409 Mechanical Property |
| Yield |
Tensile |
Elongation |
Hardness, max |
| ASTM A240 409 |
Min Mpa |
Mpa |
Min % |
Brinell |
Rockwell B |
| 170 |
380 |
20% |
179 |
|
Equivalent Standard of Stainless Steel 409 Sheets & Plates
| SS Grade |
WERKSTOFF NR./ EN |
KS |
UNS |
JIS |
AFNOR |
GOST |
EN |
| SS 409 |
1.4512 |
STS409 |
UNS S40900 |
SUH409 |
- |
- |
- |
Basic Type of Stainless Steel Sheets & Plates
Cold Roll AISI 409 Mirror finishing SS Sheet
4x8 Stainless Steel 409 Sheet
10mm Thick Stainless Steel 409 Plate
0.35mm Cold Rolled BA Mirror Secondary Stainless Steel 409 coil
Cold Rolled SS 409 1.0mm thick plate
409 NO.8 Mirror Stainless Steel Sheet
409 Hot Rolled Stainless Steel Plate
409 0.8mm Double Color Mirror Stamped Finish SS Sheets
3mm Thick Stainless Steel 409 Sheet
409 Mirror 2B finish 0.6mm 0.5mm SS Sheet
Hot Rolled 2B Finish 6mm Grade Stainless Steel 409 Sheet
4mm Cold Rolled Stainless Steel 409 Sheet
