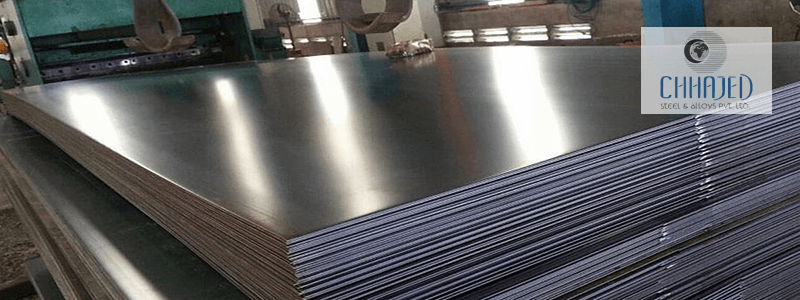

Stainless Steel 316 Sheets & Plates
Stainless Steel 316 Sheets & Plates Manufacturers in Mumbai, Stainless Steel 316 Sheets & Plates Suppliers in Mumbai, Stainless Steel 316 Sheets & Plates Stockists in Mumbai, Stainless Steel 316 Sheets & Plates Exporters in Mumbai
316 grades contain a higher level of Nickel than 304 giving it an improved corrosion resistance over 304 grades. 316/316L sheet possesses excellent mechanical properties at sub-zero temperatures and good corrosion resistance making it a great choice for marine applications. The main types of SS 316 sheets are perforated sheets, Chequered plate, Coils, Foils, Flats and Shim sheet.
Stainless steel 316 Plate in all common thickness in cut to size so our customers save money and don't pay for wastage. If you are looking for SS 316 Plate or strips for acidic or high temperature application so you should check the documents like MTR, Invoice, proof of origin, Batch no and other test reports.
All Chhajed products are manufactured under strict process control and monitored throughout the production process. They go through several checks to ensure that the product delivered is of finest quality!
Specification Schedule of Stainless Steel 316 Sheets & Plates
| SS ASTM Standard Specification |
ASTM A240 / ASME SA240 |
| International Standard |
- ASTM A 480
- ASTM A 959
- ASME IID
- EN ISO 9445
- EN ISO 18286
- EN 10051
- EN 10088-1
- ISO 15510
|
| Size Range |
- Cold rolled ASME SA240 Stainless Steel Sheet 0.5-6.4 mm
- Hot rolled ASME SA240 Stainless Steel Sheet 3.0–10.0 mm
|
| Thickness |
0.1 to 100 mm Thk |
| Width |
10-2500mm |
| Length |
2m, 2.44m, 3m, or as required |
| Finish |
2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc. |
| Hardness |
Half Hard, Soft, Hard, Quarter Hard, Spring Hard |
| Form |
Sheet, Plate, Strip, Flats, Clad Plate, Coils, Foils, Plain Sheet, Flat Shim, Flat Sheet, Shim Sheet, Rolling Sheet, Rolling Plate, Rolls, Blank (Circle), soft annealed, descaled, tread plate, sheared, annealed, Checker Plate manufacturer and Supplier |
Chemical Properties of Stainless Steel 316 Sheets & Plates
| Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
N |
| 316
|
min. |
– |
– |
– |
– |
16.0 |
2.0-3.0 |
10.0 |
– |
| max. |
0.035 |
2.0 |
0.75 |
0.045 |
0.030 |
18.0 |
14.0 |
– |
| 316
|
min. |
– |
– |
– |
– |
– |
16.0 |
2.0-3.0 |
10.0 |
– |
| max. |
0.035 |
2.0 |
0.75 |
0.045 |
0.030 |
18.0 |
14.0 |
– |
Mechanical Properties of Stainless Steel 316 Sheets & Plates
| Grade |
Tensile Strength (MPa) min |
Yield Strength 0.2% Proof (MPa) min |
Elongation (% in 50mm) min |
Hardness |
| Rockwell B (HR B) max |
Brinell (HB) max |
| 316 |
515 |
205 |
40 |
95 |
217 |
| 316 |
485 |
170 |
40 |
95 |
217 |
Basic Type of Stainless Steel Sheets & Plates
Cold Roll AISI 316 Mirror finishing SS Sheet
4x8 Stainless Steel 316 Sheet
10mm Thick Stainless Steel 316 Plate
0.35mm Cold Rolled BA Mirror Secondary Stainless Steel 316 coil
Cold Rolled SS 316 1.0mm thick plate
316 NO.8 Mirror Stainless Steel Sheet
316 Hot Rolled Stainless Steel Plate
316 0.8mm Double Color Mirror Stamped Finish SS Sheets
3mm Thick Stainless Steel 316 Sheet
316 Mirror 2B finish 0.6mm 0.5mm SS Sheet
Hot Rolled 2B Finish 6mm Grade Stainless Steel 316 Sheet
4mm Cold Rolled Stainless Steel 316 Sheet
