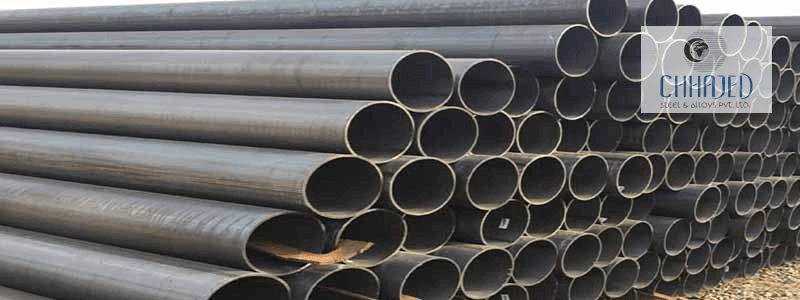

ASTM A519 Gr 1018 Carbon Steel Pipes
ASTM A519 Gr 1018 Carbon Steel Pipes Manufacturers in Mumbai, ASTM A519 Gr 1018 Carbon Steel Pipes Suppliers in Mumbai, ASTM A519 Gr 1018 Carbon Steel Pipes Stockists in Mumbai, ASTM A519 Gr 1018 Carbon Steel Pipes Exporters in Mumbai
ASTM A519 1018 Steel Chromoly Tubing is known to have a good combination of all of the typical characteristics of steel. For instance, the main features of the carbon ASTM A519 Grade 1018 steel pipes strength, some ductility, and comparative ease of machining. Chemically, although the Chrome Moly Steel ASTM A519 1018 Boiler Tubing is very similar to A36 Hot Rolled steel, but because the ASTM A519 Grade 1018 has been manufactured by a cold rolling process, it tends to have a better surface finish as well as better properties.
If secondary melting processes are used on the A519 gr 1018 Seamless Steel Tubing, the heat analysis can be obtained from a single re-melted ingot or the analysis could be obtained from a product of a re-melted ingot of each primary melt. The Alloy Steel ASTM A519 1018 Square Tubing needs to be coated with a layer of oil before shaping to retard rust as and when specified.
All Chhajed products are manufactured under strict process control and monitored throughout the production process. They go through several checks to ensure that the product delivered is of finest quality!
Specification Schedule of ASTM A519 Gr 1018 Carbon Steel Pipes
| Carbon Steel 1018 Seamless Tubing specification |
- AMS 5069
- ASTM A108
- ASTM A29 (1018)
- ASTM A510 (1018)
- ASTM A512 (1018)
- ASTM A513
- ASTM A519 (1018)
- ASTM A544 (1018)
- ASTM A545 (1018)
- ASTM A548 (1018)
- ASTM A549 (1018)
- ASTM A576 (1018)
- ASTM A611 (D-1)
|
- ASTM A635 (1018)
- ASTM A659 (1018)
- ASTM A794 (1018)
- ASTM A830
- MIL J-1397 (1018)
- MIL J-403 (1018)
- MIL J-412 (1018)
- MIL S-11310 (CS 1018)
- SAE J1397
- SAE J403
- SAE J412
- UNS G10180
|
| Steel Grade |
AISI 1017 , 1018 , 1020 GRADES, AISI1018, SAE1018 |
| Minimum Order Quantity |
20 Meter |
| Nominal Size (NPS) |
3 inch, 3/4 inch, 2 inch, 1 inch, 1/2 inch |
| Thickness |
1.5 MM TO 10 MM |
| Diameter |
15 MM OD TO 915 MM OD |
| Relevant Grade |
1017, 1018, 1020 |
| Surface Finish |
Mill Finished, Coated |
| Mfg Process |
Cold Drawn |
| Alloy Or Not |
Non Alloy |
| Thickness (Millimeter) |
1.5 MM TO 10 MM THIK |
| Diameter (mm) |
1/2 TO 36 |
| Outer Diameter (mm) |
6 MM OD |
| Length |
6m, 3m |
| Unit Pipe Length |
6 meter, 3 meter |
| Features |
- Rust Resistance
- Resistance Corrosion
|
| Min Outer Dimensions |
6 MM OD |
| Pressure Capacity |
1500 - 2000 PSI |
| Schedules |
SCH 10 through 160, STD, XS, XXS |
| Size |
1/2 TO 36 INCH |
| Unit Length |
12 m, 6 m |
| Available Length |
6 MTRS |
| Certification |
UL, BSI, API, CE |
Chemical Composition of ASTM A519 Gr 1018 Carbon Steel Pipes
| Element |
Content |
| Carbon, C |
0.14 – 0.20 % |
| Iron, Fe |
98.81 – 99.26 % (as remainder) |
| Manganese, Mn |
0.60 – 0.90 % |
| Phosphorous, P |
≤ 0.040 % |
| Sulfur, S |
≤ 0.050 % |
Mechanical Composition of ASTM A519 Gr 1018 Carbon Steel Pipes
| Properties |
Metric |
Imperial |
| Hardness, Brinell |
126 |
126 |
| Hardness, Knoop (Converted from Brinell hardness) |
145 |
145 |
| Hardness, Rockwell B (Converted from Brinell hardness) |
71 |
71 |
| Hardness, Vickers (Converted from Brinell hardness) |
131 |
131 |
| Tensile Strength, Ultimate |
440 MPa |
63800 psi |
| Tensile Strength, Yield |
370 MPa |
53700 psi |
| Elongation at Break (In 50 mm) |
15.0 % |
15.0 % |
| Reduction of Area |
40.0 % |
40.0 % |
| Modulus of Elasticity (Typical for steel) |
205 GPa |
29700 ksi |
| Bulk Modulus (Typical for steel) |
140 GPa |
20300 ksi |
| Poissons Ratio (Typical For Steel) |
0.290 |
0.290 |
| Machinability (Based on AISI 1212 steel. as 100% machinability) |
70 % |
70 % |
| Shear Modulus (Typical for steel) |
80.0 GPa |
11600 ksi |
Equivalent Grade of ASTM A519 Gr 1018 Carbon Steel Pipes
| STANDARD |
WERKSTOFF NR. |
UNS |
| AISI 1018 |
1.0453 |
G10180 |

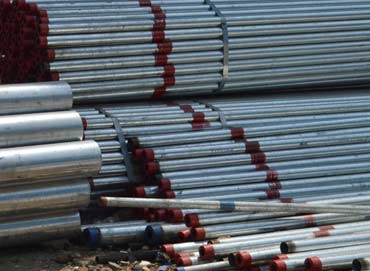

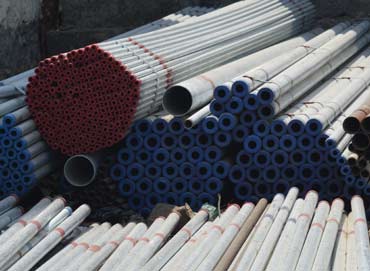

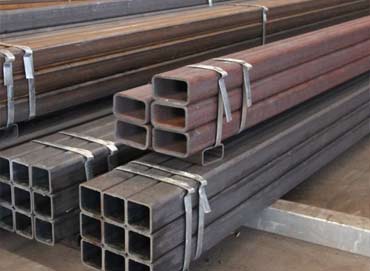

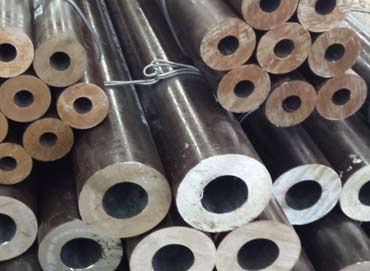

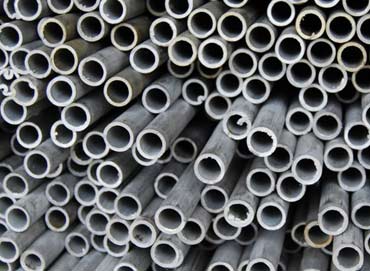

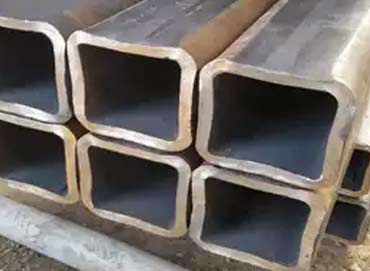

Basic Type of ASTM A519 Gr 1018 Carbon Steel Pipes
ASTM A519 Gr 1018 Carbon Steel Pipes
ASTM A519 Gr 1018 Carbon Steel Pipes
ASTM A519 Gr 1018 Carbon Steel Pipes
Low ASTM A519 Gr 1018 Carbon Steel Pipes
ASTM A519 Gr 1018 Carbon Steel Pipes
Cold Rolled ASTM A519 Gr 1018 Carbon Steel Pipe
