Super Duplex 2507 Pipes
Super Duplex 2507 Pipes Manufacturers in Mumbai, Super Duplex 2507 Pipes Suppliers in Mumbai, Super Duplex 2507 Pipes Stockists in Mumbai, Super Duplex 2507 Pipes Exporters in Mumbai

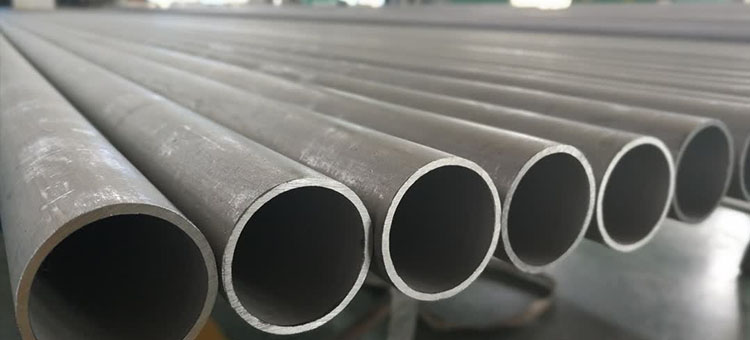

Super Duplex 2507 Pipe is a super duplex material made metal pipe. The super duplex is an alloy of chromium, molybdenum and nickel. The material has very high corrosion resistance properties and is resistant to pitting corrosion, crevice corrosion and uniform corrosion as well. The Alloy 2507 Seamless Pipes are produced through a method called the cold drawing. Cold drawn pipes are seamless or have smooth surfaces. Super Duplex is an austenitic-ferritic iron chromium – nickel alloy with molybdenum addition. It has good resistance to pitting and a very good tensile strength and high resistance to stress corrosion cracking at moderate temperatures, compared to that of conventional austenitic stainless steels.
Super duplex material properties make the super duplex specifically applicable in different applications. The piping systems in desalination plants, fuel systems, chemical industries and food processing industries use the super duplex grades. There are sheets, plates, pipes, fittings and other accessories made out of this material. The Super duplex steel suppliers sell all the different products of super duplex according to the need of the customers.
All Chhajed products are manufactured under strict process control and monitored throughout the production process. They go through several checks to ensure that the product delivered is of finest quality!
Specification Schedule of Super Duplex 2507 Pipes
| Specification of UNS S32750 / UNS S32760 Seamless Pipe |
Astm A790 and Asme Sa790 |
| Standard |
ASTM, AISI, EN, GB, DIN, JIS, ASME |
| UNS S32750 / UNS S32760 Seamless Pipe Outer Diameter |
6.00MM Outer Diameter upto 250MM Outer Diameter, Sizes upto 12Inch NB |
| UNS S32750 / UNS S32760 Welded Pipe size |
5.0 MM To 1219.2 MM |
| UNS S32750 / UNS S32760 EFW Pipe size |
5.0 To 1219.2 MM |
| Thickness |
0.3 To 50 MM |
| Super Duplex UNS S32750 / UNS S32760 Seamless Tube Sizes |
3.35MM Outer Diameter - 101. MM Outer Diameter, 15NB to 150NB Inch |
| ASTM A790 UNS S32750 / UNS S32760 Welded Tube Sizes |
6.35MM Outer Diameter To 152MM Outer Diameter Pipe |
| Swg and Bwg |
10, 12, 14, 16, 18, 20 Swg. |
| uns S32750 tubing wall thickness |
0.020" –0.220 Inch (special wall thicknesses available) |
| ASTM A790 UNS S32750 / UNS S32760 Pipe Schedule |
5, 10, 40, 80, 80S, 160, XXS, XS ASTM A790 Uns S32750 Pipe Supplier |
| UNS S32750 / UNS S32760 Seamless Pipe Finish |
NO.1, Polished, 2B, Annealed and Pickled, Bright and Annealed, MF, NO.4, BA, HL, 8K, Mirror finish etc |
| UNS S32750 / UNS S32760 Welded Pipe Form |
U Shape, Round, Square, Hollow, Hydraulic, Coiled, Straight Pipes, Rectangular, Pan Cake Coils etc. |
| ASTM A790 UNS S32750 / UNS S32760 Tube Length |
Double Random, Single Random, Standard and Cut length |
| UNS S32750 / UNS S32760 Pipe End |
Plain End, Beveled End, Treaded Pipe |
| UNS S32750 / UNS S32760 Pipe & Tube Type |
UNS S32750 / UNS S32760 Seamless, ERW, EFW, Welded, Fabricated, CDW, DOM and CEW Pipe |
| ASTM A790 S32750 Pipe Marking |
All UNS S32750 / UNS S32760 Pipes are marked as follows: Supplier and Manufacturer's Name, Grade, Standard, OD, Thickness, Length, Heat No and Supplier / Manufacturer's Name |
| A790 UNS S32750 / UNS S32760 Tube Application |
Fluid Tube, Oil Tube, Gas Tube, Boiler and Heatexchanger |
| Supplier provide Value Added Service |
Draw and Expansion as per required Size and Length, Polish are Electro and Commercial or Annealed and Pickled Bending, Machining Etc. |
| Specialized in |
Large Diameter UNS S32750 / UNS S32760 Pipe
UNS S32750 / UNS S32760 Boiler Tube and Other Odd Size
UNS S32750 / UNS S32760 Heat Exchanger and Condenser Tubes |
| We can also cut, thread, and groove ASTM A790 UNS S32750 / UNS S32760 Seamless Pipe to meet your specifications. |
Chemical Properties of Super Duplex 2507 Pipes
| Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
N |
Fe |
| Super Duplex S32750 Round Bar |
0.030 max |
1.20 max |
0.80 max |
0.035 max |
0.020 max |
24.00 – 26.00 |
3.00 – 5.00 |
6.00 – 8.00 |
0.24 – 0.32 |
58.095 min |
| Super Duplex S32760 Bar |
0.05 max |
1.00 max |
1.00 max |
0.030 max |
0.010 max |
24.00 – 26.00 |
3.00 – 4.00 |
6.00 – 8.00 |
0.20 – 0.30 |
57.61 min |
Mechanical Properties of Super Duplex 2507 Pipes
| Grades |
Density (g/cm 3) |
Density (lb/in 3) |
Melting Point (°C) |
Melting Point (°F) |
| Super Duplex S32750/S32760 Round Bar |
7.8 |
0.281 |
1350 |
2460 |
Equivalent Standard of Super Duplex 2507 Pipes
| STANDARD |
WERKSTOFF NR. |
UNS |
| Super Duplex S32750/S32760 |
1.4410 |
S32750 / S32760 |
Basic Type of Super Duplex Pipes
ASTM A790 UNS S32750 Pipe
SA 790 Gr S32750 Seamless Pipe
Stainless UNS S32750 Cold Drawn Seamless Pipe
