Aluminium Alloy 5086 Pipes, Aluminium Alloy Welded Rectangular Pipes Manufacturers, Aluminium Alloy 7075 Seamless Pipe Suppliers, Aluminium Alloy 5052 Marine Exhaust Pipe Exporters,, Aluminium Alloy Polished Decorative Pipe Stockists.
Aluminium Alloy 5052 Square Pipe in India, Aluminium Alloy 7075 Pipes Manufacturers in India, Aluminium Alloy Rectangular Pipe Suppliers in India, Aluminium Alloy 6063 Hydraulic Pipe Exporters in India, Aluminium Alloy 5083 ERW Pipes Stockists in India.

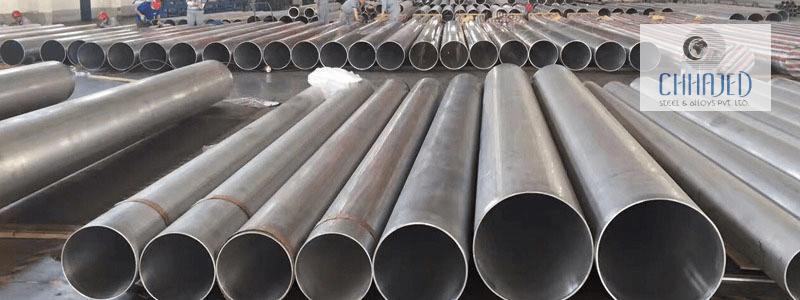

Aluminium Alloy Pipes
Aluminium Alloy Threaded Pipe in Mumbai, Aluminium Alloy High Pressure Pipe Manufacturers in Mumbai,Aluminium Alloy Grooved Pipe Suppliers in Mumbai, Aluminium Alloy Marine Exhaust Pipe Exporters in Mumbai, Aluminium Alloy Large Diameter Seamless Pipe Stockists in Mumbai.
Aluminum Pipe uses of these pipes are seen in different industries. It is a type of metal pipes made up of aluminum. Although it is cheaper than copper, it is not used in plumbing for water lines because the pipes could corrode easily in water. Aluminum Pipe can react with water and produce oxides and deposit them into water as well. The Seamless Aluminum Pipes are made in different shapes and sizes. They are drawn directly from solid aluminum sources and therefore there is no a welded track or mark on it. Since aluminum is not as strong as some other metal alloy materials, it has to be optimized for strength. The Aluminum Square Pipes can be used with somewhat stronger applications without collapsing the shape. Instead of the round pipes which are weaker at bends, the square pipes are stronger at corners because of the geometry.
The Aluminum Section Pipes are light weight, they are used in system which mandate lightweight. They can be used in larger applications like the fuselages of planes and in fuel pipe lines. The Threaded Aluminum Pipes could be joint without the need of welding. So the Aluminum Seamless Pipes could be used in applications that are lightweight and require high precision. There is Large Diameter Aluminum Pipes as well as small diameter aluminum pipes.
All Chhajed products are manufactured under strict process control and monitored throughout the production process. They go through several checks to ensure that the product delivered is of finest quality!
Specification Schedule of Aluminium Alloy Pipes
| Hardness |
8 HW |
| Grade and Specification |
6000 Series, ASTM B 211 ASME SB 211 / ASTM B 619 ASME SB 619 |
| Temper |
T3 - T8 |
| Size Ranges |
15- 150" NB IN |
| Al (Min) |
98% |
| ASME B36.10M Schedule Chart |
SCH5, SCH10, SCH40, STD, SCH80, SCH120, SCH160 |
| Alloy Or Not |
is Alloy |
| Surface Treatment |
Anodized, Powder Coated, Mill Finished |
| Most popular types |
Seamless / ERW / Welded / Fabricated |
| Forms / Shapes |
Square, Round |
| Pipe End Forming |
Treaded Both Ends, Plain One End, Treaded One End, Bevel both ends, Bevel large end, Bevel one end, Beveled end, Plain Both Ends, Bevel small end, Beveled One end |
| Technique |
Extruded or seamless |
1/2 Inch Aluminium Pipe Schedule Chart
| 1/8" IPS(.405" O.D.) |
3 1/2" IPS( 4.000" O.D.) |
| SCH 40, 80 |
SCH 10, 40, 80, 160, XXH |
| 1/4" IPS(.540" O.D.) |
4" IPS(4.500" O.D.) |
| SCH 10, 40, 80 |
SCH 10, 40, 80, 160, XXH |
| 3/8" IPS(.675" O.D.) |
5" IPS( 5.563" O.D.) |
| SCH 10, 40, 80 |
SCH 10, 40, 80, 160, XXH |
| 1/2" IPS(.840" O.D.) |
6" IPS(6.625" O.D.) |
| SCH 5, 10, 40, 80, 160, XXH |
SCH 5, 10, 40, 80, 120, 160, XXH |
| 3/4" IPS(1.050" O.D.) |
8 " IPS(8.625" O.D.) |
| SCH 10, 40, 80, 160, XXH |
SCH 5, 10, 40, 80, 120, 160, XXH |
| 1" IPS:(1.315′ O.D.) |
10" IPS(10.750" O.D.) |
| SCH 5, 10, 40, 80, 160, XXH |
SCH 10, 20, 40, 80 (.500), TRUE 80(.500) |
| 1-1/4" IPS(1.660" O.D.) |
12" IPS(12.750" O.D.) |
| SCH 10, 40, 80, 160, XXH |
SCH 10, 20, 40(.375), TRUE40(.406), SCH80(.500) |
| 1-1/2" IPS(1.900" O.D.) |
14" IPS(14.000" O.D.) |
| SCH 10, 40, 80, 160, XXH |
SCH10 (.188), SCH40 (.375) |
| 2" IPS(2.375" O.D.) |
16" IPS(16.000" O.D.) |
| SCH 10, 40, 80, 160, XXH |
SCH10(.188), SCH40(.375) |
| 2 1/2" IPS(2.875" O.D.) |
18" IPS (18.000" O.D.) |
| SCH 10, 40, 80, 160, XXH |
SCH-40 (.375) |
| 3" IPS( 3.500" O.D.) |
|
| SCH 5, 10, 40, 80, 160, XXH |
|
Mechanical Composition of Aluminium Alloy Pipes
| OM SIZE |
OUTSIDE
DIA (D) |
WALL THICKNESS IN MM (T)
|
METRIC SIZE |
| SCH 10S |
SCH 10 |
SCH
40 S |
STD Weight |
SCH 40 |
SCH 80s |
SCH 80 |
| 1/4 " |
13.72 |
1.65 |
|
2.24 |
2.24 |
2.24 |
3.02 |
3.02 |
- |
| 3/8" |
17.15 |
1.65 |
|
2.31 |
2.31 |
2.31 |
3.2 |
3.2 |
|
| 1/2" |
21.34 |
2.11 |
- |
2.77 |
2.77 |
2.77 |
3.73 |
3.73 |
15 |
| 3/4" |
26.67 |
2.11 |
|
2.87 |
2.87 |
2.87 |
3.91 |
3.91 |
20 |
| 1" |
33.4 |
2.77 |
- |
3.38 |
3.38 |
3.38 |
4.55 |
4.55 |
25 |
| 1 1/4" |
42.16 |
2.77 |
|
3.56 |
3.56 |
3.56 |
4.85 |
4.85 |
32 |
| 1 1/2" |
48.26 |
2.77 |
|
3.68 |
3.68 |
3.68 |
5.08 |
5.08 |
40 |
| 2" |
60.32 |
2.77 |
- |
3.91 |
3.91 |
3.91 |
5.54 |
5.54 |
50 |
| 2 1/2" |
73.02 |
3.05 |
- |
5.16 |
5.16 |
5.16 |
7.01 |
7.01 |
65 |
| 3" |
88.9 |
3.05 |
- |
5.49 |
5.49 |
5.49 |
7.62 |
7.62 |
80 |
| 3 1/2" |
101.6 |
3.05 |
- |
5.74 |
5.74 |
5.74 |
8.08 |
8.08 |
90 |
| 4" |
114.3 |
3.05 |
- |
6.02 |
6.02 |
6.02 |
8.56 |
8.56 |
100 |
| 5" |
141.3 |
3.4 |
- |
6.55 |
6.55 |
6.55 |
9.52 |
9.52 |
125 |
| 6" |
168.27 |
3.4 |
- |
7.11 |
7.11 |
7.11 |
10.97 |
10.97 |
150 |
| 8" |
219.07 |
3.76 |
- |
8.18 |
8.18 |
8.18 |
12.7 |
12.7 |
200 |
| 10" |
273.05 |
4.19 |
- |
9.27 |
9.27 |
9.27 |
12.7 |
15.08 |
250 |
| 12" |
323.85 |
4.57 |
- |
9.52 |
9.52 |
10.31 |
12.7 |
17.47 |
300 |
| 14" |
355.6 |
4.77 |
6.35 |
- |
9.52 |
11.12 |
- |
19.05 |
350 |
| 16" |
404.6 |
4.77 |
6.35 |
- |
9.52 |
12.7 |
- |
21.44 |
400 |
| 18" |
457.2 |
4.77 |
6.35 |
- |
9.52 |
14.27 |
- |
23.82 |
450 |
