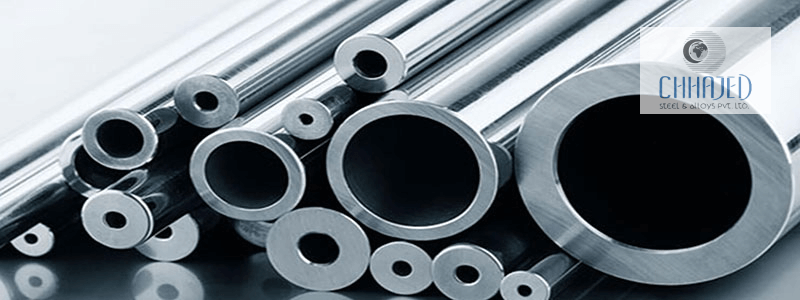

Stainless Steel 321 Pipes
Stainless Steel 321 Pipes Manufacturers in Mumbai, Stainless Steel 321 Pipes Suppliers in Mumbai, Stainless Steel 321 Pipes Stockists in Mumbai, Stainless Steel 321 Pipes Exporters in Mumbai
SS 321H Seamless Pipe is then heated and formed over such as piercing rod to create a hollow pipe or shell. It is procured form a solid steel i.e. in sheet or bar form and is formed into a round solid shape which is known as "billets". 321h stainless steel pipe is developed to enhance creep resistance and for high strength at temperature above 1000°F. It is the higher carbon version of the alloy. 321 seamless pipe exhibits good corrosion resistance as compared to 304 stainless steel.
It is useful for applications such as chemical processing, pharmaceutical production, food processing, aerospace, petroleum refining, etc. ASTM A312 TP321 hardens quickly and may acquire annealing after severe forming. They can be readily formed and drawn, however high pressure are required and more spring back is encountered than for ferritic stainless steel and carbon steel.
Stainless Steel 321 Pipe has higher creep and stress rupture properties than Grade 304 and 321 and it resists oxidation to 1500°F and it acquires good low temperature toughness. They cannot be hardened by heat treatment but only by cold working. It is austenitic stainless steel it is similar to Grade 304 but the addition of titanium is at least five times the carbon content and provides good corrosion resistance. After exposure to temperatures in the chromium carbide precipitation range of 800 - 1500°F it provides excellent resistance to intergranular corrosion. It can be easily processed and welded by standard fabrication practices.
All Chhajed products are manufactured under strict process control and monitored throughout the production process. They go through several checks to ensure that the product delivered is of finest quality!
Specification Schedule of Stainless Steel 321 Pipes
| ASTM / ASME Specification |
ASTM A312 / ASTM SA 312 |
| Dimensional Standards |
ANSI/ASME B36.19M, ANSI/ASME B36.10M |
| Different Types and Shapes |
Hydraulic, Square, Hex, Honed, Round, Rectangle |
| Most Common types |
100% X Ray Welded, Seamless, CDW, Fabricated, ERW, Welded |
| Pipe End Types |
Plain One End, Plain Both Ends, Bevel small end, Treaded On End, Beveled end, Bevel one end, Bevel large end, Beveled One End, Treaded Both Ends, Bevel both ends |
| Technical Conditions of The Pipe |
Cold Drawn, Bright Annealed, Annealed and Pickled, Polished |
| Mechanical Surface Finishing |
2B, No.4, No.1, No.8 Mirror Finish or custom Finish as per customer Requirements |
Wall Wall Thickness Schedule Chart
|
SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| Other Services we provide |
- Draw & Expansion as per client's required Size & Length
- Polish (Electro & Commercial) Heat Treatment
- Annealed & Pickled
- Bending
- Sand Blasting
- Machining Etc.
|
| Marking available for TP321 Pipes |
- Specification
- Grade
- Nominal Pipe Sizes
- Pipe Schedule or Wall Thickness
- Manufacturing Method (Seamless / Welded)
- Heat Number
- Supplier/ Manufacturer's Name or Custom Logo - on request
Marked Pipe Sample: ANSI B36.19 ASTM A312 TP321 12" NB SCH 40S SEAMLESS HEAT NO. XXXX |
Chemical Properties of Stainless Steel 321 Pipes
|
SS 321 |
| Ni |
9 – 12 |
| Cr |
17 – 19 |
| C |
0.08 max |
| N |
0.10 max |
| Fe |
Balance |
| Mn |
2 max |
| Si |
0.75 max |
| S |
0.03 max |
| P |
0.045 max |
| Ti |
5xC min
0.60% max |
Mechanical Properties of Stainless Steel 321 Pipes
| Density |
8.0 g/cm3 |
| Melting Point |
1454 °C (2650 °F) |
| Tensile Strength |
Psi – 75000 , MPa – 515 |
| Yield Strength (0.2%Offset) |
Psi – 30000 , MPa – 205 |
| Elongation |
35 % |
Equivalent Standard of Stainless Steel 321 Pipes
| ASTM |
STANDARD |
WNR |
UNS |
JIS |
EN |
| A182 |
SS 321 |
1.4541 |
S32100 |
SUS 321 |
X6CrNiTi18-10 |
