Stainless Steel 304L Pipes, Stainless Steel 304L Pipes Manufacturers, Stainless Steel 304L Pipes Suppliers, Stainless Steel 304L Pipes Stockists, Stainless Steel 304L Pipes Exporters
Stainless Steel 304L Pipes Manufacturers In India, Stainless Steel 304L Pipes Suppliers In India, Stainless Steel 304L Pipes Stockists In India, Stainless Steel 304L Pipes Exporters In India

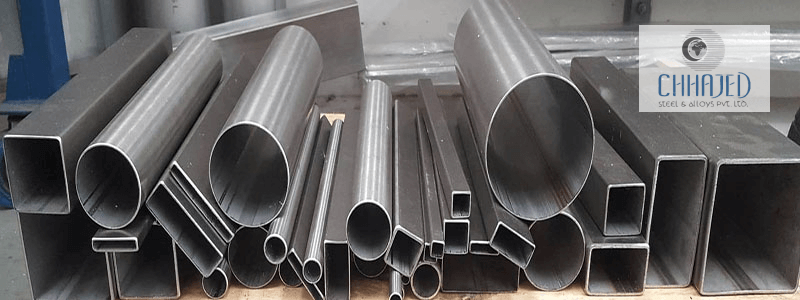

Stainless Steel 304L Pipes
Stainless Steel 304L Pipes Manufacturers in Mumbai, Stainless Steel 304L Pipes Suppliers in Mumbai, Stainless Steel 304L Pipes Stockists in Mumbai, Stainless Steel 304L Pipes Exporters in Mumbai
304L Alloy is a lower carbon version of the 304 stainless steel alloy. The Stainless Steel 304L Pipe/ Tube is made up of carbon, nickel, chromium, phosphorous, molybdenum, manganese, and sulfur. These alloys are designed with a tensile strength of minimum 485Mpa and yield strength of minimum 170Mpa. The Stainless Steel 304L Pipe can be easily elongated by 35% as per requirements. These pipes and tubes are used in the transportation of gases, fluids, food industry, chemical systems, etc. We are amongst the leading Stainless Steel 304L Tube suppliers in Mumbai. We aim to produce the best products in the markets at reasonable rates. The Stainless Steel 304L Seamless Pipe is produced without the requirements of fillets or welding. These pipes are extremely strong and a little expensive due to the materials used in their manufacturing.
SS 304L Seamless Pipe can be used in very corrosive environments. They are available in different schedules and wall thicknesses to suit the different requirements of our clients. Manufactured by joining pieces of steel together, the SS UNS S30403 Welded Pipe is highly versatile. The low carbon in this 304L alloy eliminates post-weld carbon precipitation. Weld annealing may be required for high-stress applications. The 304L SS Schedule 40 Pipe is a high-pressure pipe. As the pressure and temperatures increase, the working allowance of these pipes decreases. These pipes can work at temperatures of up to 525 degrees C. The Stainless Steel 304L Pipe/ Tube can be customized as per your requirements in different shapes and sizes.
All Chhajed products are manufactured under strict process control and monitored throughout the production process. They go through several checks to ensure that the product delivered is of finest quality!
Specification Schedule of Stainless Steel 304L Pipes
| Specifications |
ASTM A/ASME SA213/ A249/ A269/ A312/ A358 CL. I to V, PED 97/23/EC, EN 10216-5 TC1 / TC2, AD 2000, NACE MR0175/ ISO 15156 |
| Standard Size |
1/8"NB TO 30" NB IN |
| Stainless Steel 304L Seamless Pipes |
1/2" NB - 16" NB |
| SS 304L ERW Pipes |
1/2" NB - 24" NB |
| SS 304L EFW Pipes |
6" NB - 100" NB |
| Outer Diameter |
6.00 mm OD up to 914.4 mm OD, Sizes up to 24" NB |
| Thickness |
0.3 - 50 mm, SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS, LSAW, SSAW, HSAW |
| Manufacturing techniques |
Seamless / ERW / Welded / Fabricated / CDW / EFW |
| Shape |
Round, Half Round, Square, Rectangular or Custom |
| Length |
Single Random, Double Random & Custom Length |
| Ends |
Plain End, Beveled End, Treaded |
| Export to |
Pretoria, Philippines, UAE, USA, UK, Saudi Arabia, South Africa |
| Test Certificate |
EN 10204 3.1 B |
Stainless Steel 304L round pipes |
Size range
| Wall thickness: 1mm- 150mm (SCH10-XXS) |
Outer diameter: 6mm- 2500mm (3/8"-100")
|
SS 304L square pipes |
Size range
| Wall thickness: 1mm- 150mm (SCH10-XXS) |
Outer diameter: 4mm*4mm- 800mm*800mm
|
Stainless Steel 304L rectangular pipes |
Size range
| Wall thickness: 1mm-150mm (SCH10-XXS) |
Outer diameter: 6mm-2500mm (3/8"-100")
|
Length: 4000mm, 5800mm, 6000mm, 12000mm, or as required.
|
Chemical Properties of Stainless Steel 304L Pipes
| Grade |
Carbon |
Ni |
P |
Cr |
Mn |
Si |
S |
Mo |
N |
| SS 304L Pipes |
0.03 max |
8 - 12 |
0.045 max |
18 - 20 |
2 max |
0.75 max |
0.030 max |
- |
0.10 max |
Mechanical Properties of Stainless Steel 304L Pipes
| Density |
Yield Strength - Psi MPa (0.2% Offset) |
Melting Range (°C and °F) |
Tensile Strength |
Elongation |
| 8.0 g/cm3 |
MPa - 205 / Psi - 30000 |
1400 °C (2550 °F) |
Psi - 75000 , MPa - 515 |
- |
Equivalent Standard of Stainless Steel 304L Pipes
| Material |
Werkstoff No. |
Tradename |
Density (g/cm3) |
UNS No. |
| A403 304L |
1.4307 |
304L Stainless |
8.0 |
S30403 |
-
Basic Type of Stainless Steel Pipes
Stainless Steel 304L Pipe
Stainless Steel 304L Seamless Pipe
Stainless Steel 304L Welded Pipe
3 Inch Stainless Steel 304L Pipe
Jindal Stainless Steel 304L Pipe
Stainless Steel 304L Exhaust Pipe
Stainless Steel 304L Flex Pipe
Stainless Steel 304L Square Pipe
Polished Decorative Schedule 10 Stainless Steel 304L Pipe
8 Inch Seamless Stainless Steel 304L Pipe
Thickness 9.0mm aisi Stainless Steel 304L seamless pipe
Food Grade Stainless Steel 304L Welded Square Pipe
