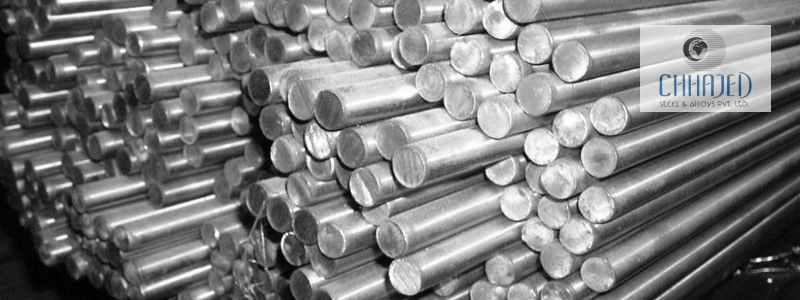

Stainless Steel 304 Round Bars
Stainless Steel 304 Round Bars Manufacturers in Mumbai, Stainless Steel 304 Round Bars Suppliers in Mumbai, Stainless Steel 304 Round Bars Stockists in Mumbai, Stainless Steel 304 Round Bars Exporters in Mumbai
Stainless Steel 304 Round Bar is a long cylindrical metal bar that is thermally conductive than carbon steel and less electrical. They are long cylindrical metal bars that are measured thought-out in diameter. It has a minimum of 18% chromium and 8% nickel and 0.08% of carbon. Stainless steel does not rust because of the interaction between its alloying elements and its austenitic steel through having non-magnetic features in the annealed form that offers excellent corrosion.
Stainless Steel 304 Rods are the round cross-section with solid-state and processing methods are heat treating and machining and cutting. It also comes in the quarter form and normally includes a cross-section based on the shape of rod or bar stock. It is implemented in different applications such as bearing, gear, shafts, fittings, valves, mining, good processing. Stainless Steel 304 Hex Bar are the smooth surface finishing in machinable with hex-shaped bar. It produces excellent mechanical properties and is easy to weld, form, cut, and machine.
Stainless Steel 304 Flat Bar provides excellent corrosion and rust resistance which doesn't require any special pre-heating or welding. They are often used for mining infrastructure, residential, engineering, and transport. Stainless Steel 304 Square Bar is commonly replaced by stainless steel 316 where stainless steel 304 is too sensitive to pitting or crevice corrosion by general corrosion in acid applications. They are easy to shape, cut weld, form, and machine with the proper requirement.
All Chhajed products are manufactured under strict process control and monitored throughout the production process. They go through several checks to ensure that the product delivered is of finest quality!
Specification Schedule of Stainless Steel 304 Round Bar
| SS 304 Angle bar size |
3mm*20mm*20mm~12mm*100mm*100mm |
| Stainless Steel 304 Square bar size |
4 to 100mm |
| Stainless Steel 304 Channel Bar |
5.0 to 6.0mm thickness, 80 x 40mm to 150 x 75mm section |
| SUS304 Rectangular Bars Section |
3.0 to 12.0mm thickness |
| SS 304 Threaded Bar Billet Size |
1/2 to 495mm Diameter |
| Stainless Steel 304 Rectangles Size |
33 x 30mm to 295 x 1066mm |
| ASTM A276 Type 304 Hollow Bar |
32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Stainless Steel 304 Material Grade |
Stainless Steel 304 (UNS S30400) |
| Stainless Steel 304 Square Bar Dimensions |
DIN, EN, ASME, BS, ASTM, JIS, AISI |
| SS 304 Standard |
ASTM A479, AMS 5513, ASTM A276, AMS 5511, AMS 5647 |
| Stainless Steel 304 Hex Bar size |
2-100mm A/F |
| Stainless Steel 304 Round bar size |
Diameter: 3-~800mm |
| SUS304 Flat bar size |
Thickness: 2 -100mm |
| Width: 10 to 500mm |
| ASTM A276 Type 304 Hollow Bar Tolerance |
H8 to H12, H13K9, K10 to K12 or as per clients' requirements |
| 304 SS Hex Bars Finish |
Cold (bright) drawn, smooth turned, peeled, centreless ground, hot rolled, slit rolled edge, Bright, Polish, Grinding, Centreless Ground & Black,hot rolled annealed, Rough Turned |
| SUS304 T-Bar Surface |
Bright, Sand Blasting Finished, Hot Rolled Pickled, Cold Drawn, Hairline,Polished |
| Rolled Stainless Steel 304 Flat Bars Condition |
annealed, Hardened & tempered |
| ASTM A276 Type 304 Cold Rolled Bar Technique |
Stainless Steel 304 Cold Drawn, Cold Rolled, Rod, Hot Rolled, Forged Round Bar |
| SS 304 Rod Processing |
Bar cutting to 650mm |
| Stainless Steel 304 Round Bar Form |
Rod, Round, Channel Bar, Rings, Round Rod, Triangle, Hollow, Rectangle, T-Bar, Flat Bar, Precision Ground Bar, Blocks, Square, Threaded, Hex (A/F), Profiles, Half Round Bar, Ingot, Billet, I/H Bar, Forging etc. |
Chemical Properties of Stainless Steel 304 Round Bar
| Grade |
C |
Mn |
Si |
K |
S |
Cr |
Mo |
Ni |
N |
| SS 304 |
0.08 max |
2 max |
0.75 max |
0.040 max |
0.030 max |
18 – 20 |
- |
8 – 11 |
- |
Mechanical Properties of Stainless Steel 304 Round Bar
| Density |
Yield Strength |
Melting Point |
Tensile Strength |
Elongation |
| 8.0 g/cm3 |
Psi – 30000 , MPa – 205 |
1400 °C or (2550 °F) |
MPa – 515, Psi – 75000 |
35 % |
Equivalent Standard of Stainless Steel 304 Round Bar
| STANDARD |
WERKSTOFF NR. |
EN |
BS |
GOST |
UNS |
JIS |
AFNOR |
| SS 304 |
1.4301 |
X5CrNi18-10 |
304S31 |
08Х18Н10 |
S30400 |
SUS 304 |
Z7CN18‐09 |
