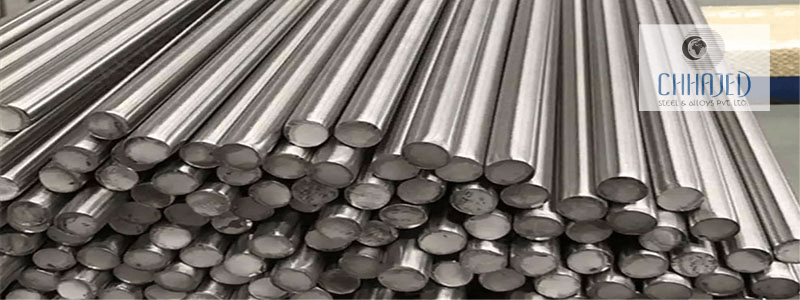

Grade 316 and 17-4 PH Pump Shaft Quality SS Round bar

Pump Shaft Quality SS Round Bars

Pump Shaft Quality SS Round Bars Manufacturers in Mumbai, Pump Shaft Quality SS Round Bars Suppliers in Mumbai, Pump Shaft Quality SS Round Bars Stockists in Mumbai, Pump Shaft Quality SS Round Bars Exporters in Mumbai

Pump Shaft Quality Stainless Steel Bar enhances the performance which further ensures minimum vibration through the complete shaft length which results is a more effective, high-performing pumping system, efficient, stable and reliable. They can vary in different shape depending on the pump application, it has been manufactured to a higher standard than common steel bars.

Pump Shaft Quality Stainless Steel Bar was earlier used for precision shafting in pumps but now because of its tighter diameter tolerances, It is been manufactured to a higher standard than common steel bars. PSQ Round Bar is a straight bar that transmits motion and torque which is supported by bearings and carries gears/ wheels.

All Chhajed products are manufactured under strict process control and monitored throughout the production process. They go through several checks to ensure that the product delivered is of finest quality!

Specification Schedule of Pump Shaft Quality Round Bar

Size Range 6 mm – 100 mm (1/4 – 4 inch)
Size Tolerances j6, e6, h6, f6, f7, h7, f8, h8, h9, ½ of A484 etc
Length 1 meter upto 8 meters (upto 26 feet)
Ovality Half of diameter tolerance
Heat Treatment Annealed, Solution Annealed, Quenched & Tempered (QT), Hardened & Tempered (HT), Quenched & Double Tempered (QDT)
Straightness 0.25mm per meter max (0.0015" per feet)
Surface Finish Ra - 0.2 um / 12 RMS max
Chamfering Available in 30, 45 & 60 degree thru fully automatic both-end chamfering machine
Crack Test Eddy Current Testing thru Circograph (from Dr. Foerster, Germany) and Magnetic Particle Inspection (MPI)
Ultrasonic Test 100% tested thru Digital Ultrasonic Flaw Detector, as per ASTM A-388, EN 10308 (class 1 to 4), API 6A/ISO 10423:2003-PSL 3, SEP 1920:1984 (class A, B, C), MIL STD 2154
Length Tolerance Available in special cut to length bars in tolerance – 0/+10mm (-0 +0.5 inch)
Grades 303, 304L, 310S, 316L, 316Ti, 321, 403, 410, 416, 420, 420B, 420C, 430F, 431, 17-4ph, Duplex F51 (2205),
1.4305, 1.4307, 1.485, 1.404, 1.4571, 1.4541, 1.4006, 1.4005, 1.4021, 14028, 1.4034, 1.4104, 1.4057,1.4542, 1.4462
Packaging Packing is done using a variety or protective materials & distance rings, and then placed in the strong plywood boxes to ensure safety of material during transportation.

Pump Shaft Quality Stainless Steel Bar Properties

GRADE SHAPE SIZE RANGE TENSILE KSI YIELD KSI ELONGATION % RED. OF AREA % BRINELL HARDNESS RELATIVE MACHINABILITY* SPECIFICATION
416 ROUNDS 3/32" - 6-1/2" 75 40 30 60 155 93% AMS 5610 /
ASTM A-484/A-582
HEXAGONS 3/8" - 2"
SQUARES 3/16" - 2"
416HT ROUNDS 1/4" - 7" - - - - - 75%

17-4 PH PSQ Round bar Specification Chart

Condition Cold Drawn, Centreless Ground & Polished Peeled, Centresless Ground & Polished
Grades 303, 304, 304L, 316, 316L, 410, 416, 420, 430F, 431, 630 (17-4 PH) & others
Diameter (Size) 6mm to 25mm (1/4" to 1") 25mm to 85mm (1" to 3-1/4")
Surface Finish Up to 20 RMS Max
Up to 0.5µmm max
Up to 20 RMS Max
Up to 0.5µmm max
Diameter Tolerance h7, h8, f7, f8
Half of ASTM A484
h7, h8, f7, f8
Half of ASTM A484
Straightness 0.5 mm per meter TIR (0.0015 inch per feet)
Out of Roundness Half of Diameter Tolerence Half of Diameter Tolerence
Length 3 upto 7 meter (12 upto 22 feet) 3 upto 7 meter (12 upto 22 feet)
Length Tolerance -0/+50mm or +20mm or +10mm
-0/+2" or 1" or 1/2"
-0/+50mm or +20mm or +10mm
-0/+2" or 1" or 1/2"
Heat Treatment Annealed/Quench & Temepered Annealed/Quench & Temepered

Grade of Pump Shaft Quality Stainless Steel Bar

PSQ Grades
UNS N05500 / Nickel Alloy 500
UNS N08020 / Alloy 20
UNS S17400 / 17-4 H1150
UNS S20910 / XM-19 High Strength
UNS S30300 / 303 BQ
UNS S30400 / 304 BQ
UNS S31600 / 316
UNS S41000 / 410
UNS S41600 / 416 Heat Treat

Basic Type of Pump Shaft Quality Stainless Steel Round Bar

PSQ 17-4PH Round Bar

PSQ 316 Flat Bar

410 SS Square Bar

416 SS Hex Bar

420 SS Precision Rods

430F SS Flat Bars
