Alloy Steel Round Bars, Alloy Steel Round Bars Manufacturers, Alloy Steel Round Bars Suppliers, Alloy Steel Round Bars Stockists, Alloy Steel Round Bars Exporters
Alloy Steel Round Bars Manufacturers In India, Alloy Steel Round Bars Suppliers In India, Alloy Steel Round Bars Stockists In India, Alloy Steel Round Bars Exporters In India
Alloy Steel Grade 2 Round Bars
Alloy Steel Round Bars Manufacturers in Mumbai, Alloy Steel Round Bars Suppliers in Mumbai, Alloy Steel Round Bars Stockists in Mumbai, Alloy Steel Round Bars Exporters in Mumbai
Alloy Steel Round Bar are found in different grades like ASTM A182 - F5, F9, F11, F12, F22 & F91 high temperature oxidation resistance is necessary and in other applications where high temperature strength is required. Alloy SAE 4140 Rod has high creep resistance and strength at high temperatures as it performs good at high temperature.
Hot Rolled Alloy Steel Round Bars manifest superior physical and mechanical properties, which are essential in applications such as annealing of aerospace and medical components to critical specifications, and heat treatment of large aerospace components in vacuum furnaces. 42crmo4 Bar is highly beneficial to their high temperature strength, it has high chromium content which is so beneficial to the wet corrosion resistance.

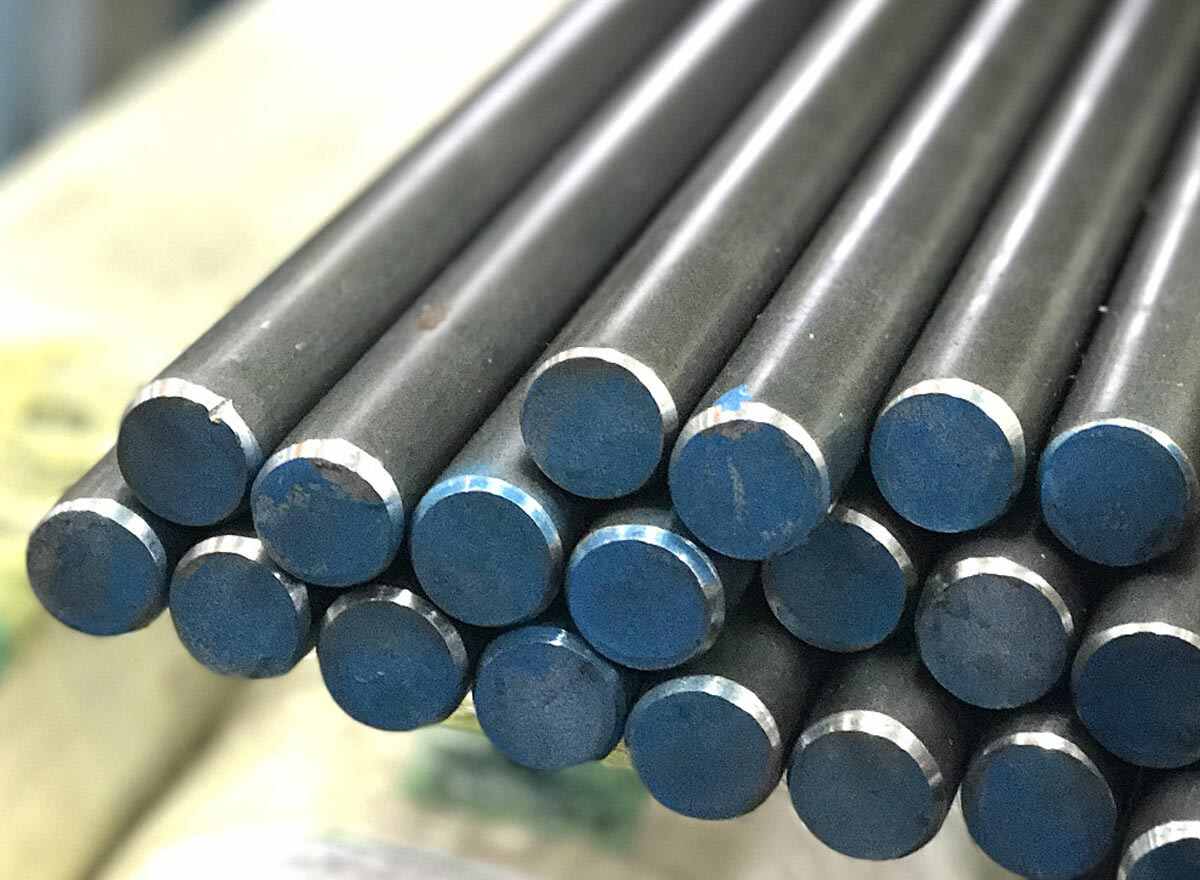

Alloy Steel Round Bar is has variety of alloying elements which improves its mechanical properties, and have great strength, formability, and hardenability. They are long, cylindrical alloy bar stock that has many industrial and commercial applications. SA 182 F91 Rod has high toughness and strength, low coefficient of thermal expansion and mechanical durability. A182 F12 Flat Bar suitable for a wide variety of applications, they are rectangular section with square edges varying in sizes.
All Chhajed products are manufactured under strict process control and monitored throughout the production process. They go through several checks to ensure that the product delivered is of finest quality!
Specification Schedule of Alloy Steel Round Bar
| Manufacturing Specification |
ASTM A182, ASME SA 182 |
| Dimensions Standards |
ASME, AISI, EN, ASTM, BS, JIS, DIN |
| Alloy Steel round bar surface finish |
- Peel turned and burnished (PTB)
- Hot Rolled Pickled
- Peel turned (PT)
- Cold Drawn
- Rough machined (RM)
- Hairline
- Sand Blasting Finished
- Black
- Bright Polished
- Polished
- NO.4 Finish
- BA Finish
- Rough Turned
- Matt Finish
|
| Alloy Steel round bar stock length |
1000 mm - 6000 mm Long or Custom Cut Lengths |
| Precision shapes |
Round, Hex (A/F), Square, Rectangle, Forging,. Billet, Ingot |
| Quality certification |
NACE MR0175 |
Chemical Properties of Alloy Steel Round Bar
| Grade |
C |
Mn |
Cr |
Ni |
Mo |
S |
P |
Si |
| A182 F5 Round Bar |
0.15 Max |
0.30-0.60 |
4.0-6.0 |
0.50 Max |
0.44-0.65 |
0.030 Max |
0.035 Max |
0.50 Max |
| A182 F1 Round Bar |
0.15 Max |
0.30-0.60 |
3.0-5.0 |
0.50 Max |
0.40-0.50 |
0.030 Max |
0.035 Max |
0.50 Max |
| A182 F22 Round Bar |
0.05-0.15 |
0.30-0.60 |
2.00-2.50 |
- |
0.90-1.10 |
0.040 Max |
0.035 Max |
0.50 Max |
| A182 F91 Round Bar |
0.08-0.12 |
0.30-0.60 |
8.0-9.5 |
0.40 Max |
0.85-1.05 |
0.010 Max |
0.020 Max |
0.20-0.50 |
| A182 F9 Round Bar |
0.15 Max |
0.30-0.60 |
8.0-10.0 |
- |
0.90- 1.10 |
0.030 Max |
0.030 Max |
0.50- 1.00 |
| 42CrMo4 Round Bar |
0.380 - 0.45 % |
0.60 - 0.90 % |
0.90 - 1.20 % |
- |
0.15 - 0.30 % |
≤ 0.035 % |
≤ 0.035 % |
- |
| A182 F11 Round Bar |
0.10-0.20 |
0.40-0.65 |
1.00-1.50 |
- |
0.44-0.65 |
0.040 Max |
0.025 Max |
0.50-0.80 |
Mechanical Properties of Alloy Steel Round Bar
| Alloy Steel Bar Properties |
Bar Conditions |
| T (°C) |
Treatment |
| Density (×1000 kg/m3) |
7.7-8.03 |
25 |
|
| Elastic Modulus (GPa) |
190-210 |
25 |
|
| Tensile Stress (Mpa) |
1158 |
25 |
fine grained, oil quenched, tempered at 425 Degree C |
| Yield Strength (Mpa) |
1034 |
| Reduction in Area (%) |
53 |
| Round Bar Hardness (HB) |
335 |
25 |
fine grained, oil quenched, tempered at 425 Degree C |
Equivalent Standard of Alloy Steel Round Bar
| ASTM A182/ SA 182 |
WERKSTOFF NR. |
DIN standard |
UNS designation |
| A182 F5/ F5A |
1.7362 |
12CrMo195 |
K41545 |
| A182 F9 |
1.7386 |
X12CrMo91 |
K90941 |
| A182 F11 (CL2) |
1.7338 |
13CrMo44 |
K11572 |
| A182 F12 (CL2) |
|
16CrMo44 |
- |
| A182 F22 (CL3) |
|
10CrMo910 |
K21590 |
| A182 F91 |
|
X10CrMoVNb9-1 |
- |
| 42CrMo4 Round Bar |
42CrMo4 |
|
|
