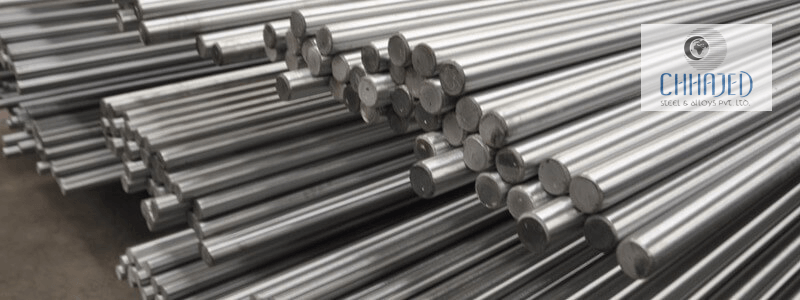

Duplex 2205 Round Bars
Duplex 2205 Round Bars Manufacturers in Mumbai, Duplex 2205 Round Bars Suppliers in Mumbai, Duplex 2205 Round Bars Stockists in Mumbai, Duplex 2205 Round Bars Exporters in Mumbai
Duplex 2205 Round Bar holds chromium of 22%, molybdenum of 3%, nickel of 5-6%, with high general, localized, and stress corrosion resistance properties. Duplex square bar is not difficult to weld, but it is necessary to design welding procedures sot that it lead to a favorable phase balance after welding and will avoid precipitation of detrimental intermetallic or nonmetallic phases.
They are machined with high-speed steel tooling at the same feeds and speeds as stainless steel 316L. The main motive of welding Duplex round bar is weld metal and heat-affected zone retains the corrosion resistance, toughness, and strength of the base metal. Duplex 2205 Flat Bar allows a fabricator to save weight and makes it more cost-competitive as compared to stainless steel 316L.
Its strength is about twice that of austenitic stainless steel. Duplex 2205 Stainless Steel Round Bar supply crevice corrosion resistance which in almost all corrosive media it is superior to austenitic stainless steels 316L and 317L. Duplex hex bar should be strengthened at 1900°F minimum, after that rapid cooling, ideally by water quenching. Stress relief treatments at any lower temperature take the risk of detrimental intermetallic. Duplex 1.4462 Round Bar high thermal conductivity and high corrosion and erosion fatigue properties than austenitic.
All Chhajed products are manufactured under strict process control and monitored throughout the production process. They go through several checks to ensure that the product delivered is of finest quality!
Specification Schedule of Duplex 2205 Round Bar
| Grade |
ASTM A276 UNS S31803 / ASTM A276 UNS S32205 |
| Standard Specification |
ASTM A276, ASME SA276 / ASTM A479 ASME SA479 |
| Dimensions |
EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Finish |
- Peel turned and burnished (PTB)
- Peel turned (PT)
- Rough machined (RM)
- Hot Rolled Pickled
- Sand Blasting Finished
- Cold Drawn
- Bright Polished
- Polished
- Hairline
- Black
- Rough Turned
- NO.4 Finish
- Matt Finish
- BA Finish
|
| Length |
1 to 6 Meters, Custom Cut Lengths |
| Manufacturing Shapes |
Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc. |
| EN 10088-3 |
20-450 mm |
| EN 10272 |
20-160 mm |
| AD2000- W2/W10 |
- |
| ASTM A 479 |
20-450 mm |
| ASME SA 479 |
20-450 mm |
| NACE MR 0175 |
custom |
Chemical Properties of Duplex 2205 Round Bar
| Duplex 2205 |
C |
Mn |
Cr |
Fe |
N |
Si |
P |
S |
Mo |
Ni |
| ASTM A276 S31803 |
0.030 max |
2.00 max |
22.0 – 23.0 |
63.72 min |
0.14 – 0.20 |
1.00 max |
0.030 max |
0.020 max |
3.0 – 3.5 |
4.50 – 6.50 |
| ASTM A276 S32205 |
0.030 max |
2.00 max |
21.0 – 23.0 |
63.54 min |
0.8 – 0.20 |
1.00 max |
0.030 max |
0.020 max |
2.5 – 3.5 |
4.50 – 6.50 |
Mechanical Properties of Duplex 2205 Round Bar
| Density |
7.8 g/cm3 |
| Tensile Strength (PSI/MPa) |
Psi - 90000 , MPa - 620 |
| Yield Strength (PSI/MPa) (0.2%Offset) |
Psi - 65000 , MPa - 450 |
| Melting Range |
1440 °C (2625 °F) |
| Elongation % |
30 % |
Equivalent Standard of Duplex 2205 Round Bar
| GRADE |
WERKSTOFF NR./ DIN |
UNS |
ASTM |
ASME |
| Duplex Steel 2205 |
1.4462 |
S31803 / S32205 |
A276 |
SA 276 |
