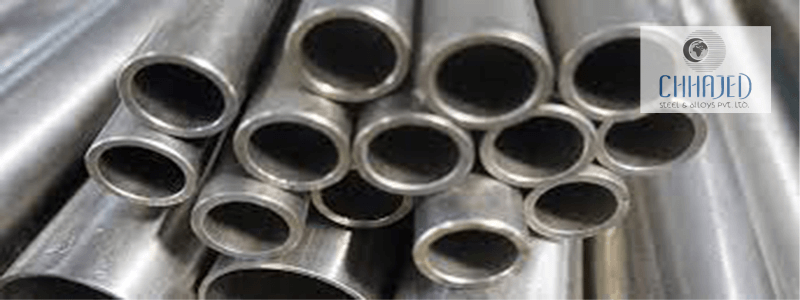

Incoloy 800 Pipes
Incoloy 800 Pipes Manufacturers in Mumbai, Incoloy 800 Pipes Suppliers in Mumbai, Incoloy 800 Pipes Stockists in Mumbai, Incoloy 800 Pipes Exporters in Mumbai
A benefit of using Incoloy 800 is its stability at elevated temperatures. This nickel-iron-chromium alloy can maintain its austenitic microstructure despite the Incoloy 800 Pipe being exposed to elevated temperatures. According to specification ASTM B407, these pipes are annealed for 15 minutes at a temperature of 1800°F. After annealing, the Alloy 800 Seamless Pipe is cooled in air. The alloy has superior resistance to Carburization. It is a phenomenon that occurs in processing based industries where gas mixtures contain hydrocarbons or Carbon monoxide come in contact with any steel. Carburization generally weakens many regular steel grade and affects their ability to resist, due to the depletion of chromium in the matrix and the formation of carbides on the surface of the pipe.
Welded Pipe Incoloy 800 make for a cheaper alternative to seamless type, though their strength is slightly lesser than the latter. The ASME SB 407 UNS N08800 is required to be subject to tests such as either the hydrostatic or nondestructive eddy-current tests, to detect consequential discontinuities, for example - a drilled hole or a transverse tangential notch. The use of these tests on the ASTM B407 UNS N08800 also aids in determining the permissible fiber stress. Mechanical properties of the Werkstoff number 1.4876 Pipe like - yield and tensile strength, elongation in addition to the grain size must conform to the requirements of the specification.
All Chhajed products are manufactured under strict process control and monitored throughout the production process. They go through several checks to ensure that the product delivered is of finest quality!
Specification Schedule of Incoloy 800 Pipes
| Specification |
- ASTM B407 UNS N08800
- ASTM B407 UNS N08810
- ASTM B407 UNS N08811
|
| Standard |
ASME N-20 (Cold Worked Seamless Condenser and Heat Exchanger Tubes for Nuclear Service), VdTÜV 412 (All Products), ASTM B 163 & ASME SB 163 (Seamless Condenser & Heat Exchanger Tubes), ISO 6207 (Seamless Tubing) , ASTM B 515/B 751 & ASME SB 515/SB 751(Welded Tubes), ASME Code Case 1325 (All Product Forms), BS 3074NA15 (Seamless Pipe & Tubes), ASTM B 407/B 829 & ASME SB 407/SB 829 (Seamless Pipe & Tubes), ASTM B 514/B 775 & ASME SB 514/SB 775 (Welded Pipe) |
| Grades |
Incoloy Alloy 800 / 800H / 800HT Pipes |
| Size Range |
15 - 150" NB IN |
| Available Pipe Schedule |
SCH 5, SCH 10, SCH 40, SCH 40s, STD, SCH 80, SCH 160 |
| Various types |
Seamless / ERW / Welded / Fabricated / LSAW Pipes |
| Forms Available |
Round, Hydraulic Etc |
| Length Available |
Single Random, Double Random & Cut Length. |
| Pipe End Forming |
Plain End, BOE, TBE, BBE, BOE, BLE, BSE, POE, BE, TOE, PBE, Beveled End, Treaded |
Chemical Properties of Incoloy 800 Pipes
| Grade |
| C |
| Mn |
| Si |
| S |
| Cu |
| Fe |
| Ni |
| Cr |
| Al |
| Ti |
|
| 800 |
| 0.10 max |
1.50 max |
1.00 max |
0.015 max |
0.75 max |
39.50 min |
30.00 – 35.00 |
19.00 – 23.00 |
0.15 – 0.60 |
0.15 – 0.60 |
| 800H |
| 0.05 – 0.10 |
1.50 max |
1.00 max |
0.015 max |
0.75 max |
39.50 min |
30.00 – 35.00 |
19.00 – 23.00 |
0.15 – 0.60 |
0.15 – 0.60 |
| 800HT |
| 0.06 – 0.10 |
1.50 max |
1.00 max |
0.015 max |
0.75 max |
39.50 min |
30.00 – 35.00 |
19.00 – 23.00 |
0.15 – 0.60ᴬ |
0.15 – 0.60ᴬ |
Mechanical Properties of Incoloy 800 Pipes
| Element |
| Density |
| Melting Point |
| Tensile Strength |
| Yield Strength (0.2%Offset) |
| Elongation |
|
| 800 / 800H / 800HT |
| 7.94 g/cm3 |
1385 °C (2525 °F) |
Psi – 75,000 , MPa – 520 |
Psi – 30,000 , MPa – 205 |
30 % |
Equivalent Standard of Incoloy 800 Pipes
| STANDARD |
| WERKSTOFF NR. |
| UNS |
| JIS |
| BS |
| GOST |
| AFNOR |
| EN |
| OR |
|
| Incoloy 800 |
| 1.4876 |
N08800 |
NCF 800 |
NA 15 |
ЭИ670 |
Z8NC32-21 |
X10NiCrAlTi32-20 |
XH32T |
| Incoloy 800H |
| 1.4958 / 1.4876 |
N08810 |
NCF 800H |
NA 15(H) |
ЭИ670 |
Z8NC33-21 |
X5NiCrAlTi31-20 |
XH32T |
| Incoloy 800HT |
| 1.4859 / 1.4876 |
N08811 |
NCF 800HT |
NA 15(HT) |
ЭИ670 |
– |
X8NiCrAlTi32-21 |
XH32T |
Basic Type of Incoloy 800 Pipes
Incoloy 800 Seamless Pipe
AISI Incoloy 800H Welded Pipe
Incoloy 800H Schedule 40 Pipe
Pure Incoloy 800 Round Pipe
