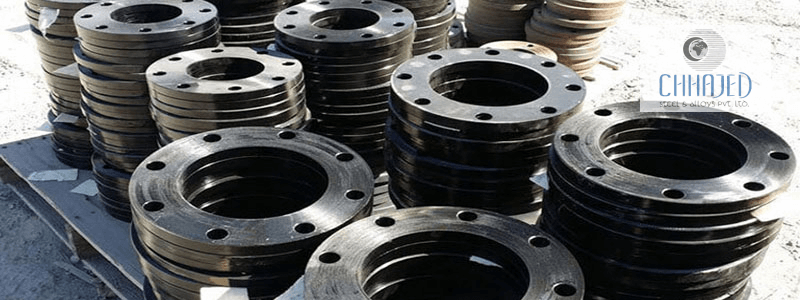

ASTM A694 Carbon Steel Flanges
ASTM A694 Carbon Steel Flanges Manufacturers in Mumbai, ASTM A694 Carbon Steel Flanges Suppliers in Mumbai, ASTM A694 Carbon Steel Flanges Stockists in Mumbai, ASTM A694 Carbon Steel Flanges Exporters in Mumbai
ASTM A694 Flanges contains different types like ASTM A694 slip on flange, ASTM A694 blind flange, ASTM A694 orifice flange, ASTM A694 socket weld flange, ASTM A694 long weld neck flange, ASTM A694 Threaded Flange, etc. Astm a694 material is of carbon and alloy steel flange for high pressure liquid transmission. Its material grades are F42, F46, F50, F52, F56, F60, F65 and F70. A694 F70 Flanges can be used in applications like water, oil, and gases at temperatures between -30ºC (-20ºF) and +593ºC (+1100ºF). A694 F42 Flanges is manufactured by excellent quality which is highly durable and long lasting. They are commonly used in connecting several valves to heat exchangers in residential areas.
It what is A694 F52 Flanges provides high strength due to high carbon content yet are ductile and easy to form into different shapes as molybdenum retains its flexibility. A694 F60 Flanges are is useful in high pressure pipeline systems where they are used for transporting oil, gas, and petrochemical aggregates. It is widely used for the transmission services due to their high strength and high pressure bearing capacity. A694 F65 Flanges can be readily manufactured from bars, slabs, ingots or billets. They can be furnished in low alloy steel, alloy steel or carbon steel.
All Chhajed products are manufactured under strict process control and monitored throughout the production process. They go through several checks to ensure that the product delivered is of finest quality!
Specification Schedule of ASTM A694 Carbon Steel Flanges
|
Specifications
|
ASTM A694 / ASME SA694 |
| Dimensions |
ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Standard |
ANSI, ASME, BS, DIN, EN etc. |
| Grades |
F42, F46, F52, F60, F65, F70, A36, A516 Gr. 70,60 |
| Size |
1/2″ to 48″ |
| Class / Pressure |
150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Flange Face Type |
Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
|
Chemical Properties of ASTM A694 Carbon Steel Flanges
| Element |
F42 Content, % |
F52 Content, % |
F60 Content, % |
F65 Content, % |
F70 Content, % |
| Carbon (C) |
0.13~0.20 |
0.16~0.22 |
0.17~0.23 |
0.17~0.23 |
0.06~0.10 |
| Silicon (Si) |
0.20~0.40 |
0.15~0.40 |
0.15~0.40 |
0.15~0.40 |
0.20~0.40 |
| Manganese (Mn) |
1.20~1.60 |
1.10~1.40 |
1.20~1.50 |
1.30~1.60 |
1.10~1.40 |
| Phosphorous (P) |
≤ 0.030 |
≤ 0.025 |
≤ 0.020 |
≤ 0.025 |
≤ 0.020 |
| Sulfur (S) |
≤ 0.020 |
≤ 0.012 |
≤ 0.012 |
≤ 0.015 |
≤ 0.010 |
| Molybdenum (Mo) |
|
0.20~0.35 |
0.45~0.60 |
0.45~0.65 |
1.20~1.70 |
| Nickel (Ni) |
≤ 0.30 |
≤ 0.50 |
0.40~1.00 |
≤ 0.30 |
0.20~0.40 |
| Chromium (Cr) |
≤ 0.30 |
≤ 0.30 |
≤ 0.25 |
≤ 0.30 |
≤ 0.30 |
| Copper (Cu) |
≤ 0.25 |
≤ 0.25 |
≤ 0.25 |
≤ 0.25 |
≤ 0.25 |
| Vanadium (V) |
|
|
≤ 0.050 |
|
0.02~0.06 |
| Niobium (Nb) |
|
|
|
0.025~0.050 |
|
| Pcm |
|
|
|
|
≤ 0.25 |
| Carbon Equivalent |
≤ 0.48 |
≤ 0.48 |
≤ 0.48 |
≤ 0.43 |
≤ 0.48 |
Mechanical Properties of ASTM A694 Carbon Steel Flanges
| ASTM A694 Grade |
Yield Strength min. |
Tensile Strength min. |
Elongation min. |
| MPa |
ksi |
MPa |
ksi |
% |
| A694 F42 FLANGES |
290 |
42 |
415 |
65 |
20 |
| A694 F46 FLANGES |
315 |
46 |
415 |
60 |
20 |
| A694 F48 FLANGES |
330 |
48 |
425 |
62 |
20 |
| A694 F50 FLANGES |
345 |
50 |
440 |
64 |
20 |
| A694 F52 FLANGES |
360 |
52 |
455 |
66 |
20 |
| A694 F56 FLANGES |
385 |
56 |
470 |
68 |
20 |
| A694 F60 FLANGES |
415 |
60 |
515 |
75 |
20 |
| A694 F65 FLANGES |
450 |
65 |
530 |
77 |
20 |
| A694 F70 FLANGES |
485 |
70 |
565 |
82 |
18 |
Basic Type of Carbon Steel Flanges
ASTM A694 Carbon Steel Plate Flanges
Carbon Steel ASTM A694 Blind Flanges
ASTM A694 Carbon Steel Lap Joint Flanges
ANSI B16.5 Carbon Steel Flanges
Precision Large Carbon Steel Flanges
ANSI B16.5 Weld Neck Flanges
ASTM A694 Carbon Steel Slip On Flanges
ASTM A694 Carbon Steel Forged Flanges
ANSI B16.5 ASTM A694 Blind Flanges
