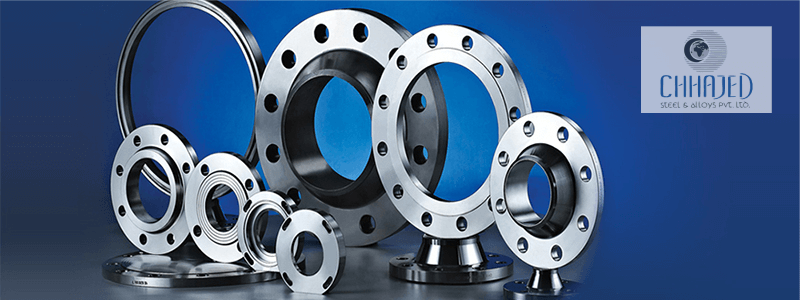

Super Duplex 2507 Flanges
Super Duplex 2507 Spectacle Blind Flanges in Mumbai, Super Duplex 2507 Lap Joint Flanges Manufacturers in Mumbai, Super Duplex 2507 Swivel Ring Flanges Suppliers in Mumbai, Super Duplex 2507 Slip On Flanges Exporters, in Mumbai, Super Duplex 2507 Screwed Flange Stockists in Mumbai.Super Duplex 2507 Orifice Flanges Manufacturers in Mumbai, Super Duplex 2507 Orifice Flanges Suppliers in Mumbai, Super Duplex 2507 Orifice Flanges Stockists in Mumbai, Super Duplex 2507 Orifice Flanges Exporters in Mumbai
Super Duplex flange is a method of connecting pipes, valves, pumps and other equipment to form a piping system. Super duplex 2507 flange are not suitable for high or low temperature service. Super Duplex Stainless Steel Flanges has low hot strength, so it may need support during heat treatment or forging. It has good high temperature oxidation resistance, like other duplex stainless steels they suffer from embrittlement if held for even short times at temperatures above 300°C. They are Hot forging should also be followed by solution treatment.
Super duplex steel flanges is usually welded or screwed, they provide easy access for cleaning, inspection or modification. It is comprised with three parts i.e, pipe flange, blotting and gasket. It can be heated at 1040 - 1120°C and cool rapidly in air or by water quenching. Its joints are made by bolting together two flanges with a gasket between them to provide a seal.
A182 Super Duplex Flange adds flexibility while maintaining piping systems by allowing for easier disassembly and improved access to system components, they are typically in welded or threaded form. Super Duplex Pipe Flanges are of many types such as super duplex socket weld flange, super duplex lap joint flange, super duplex slip on flange, super duplex blind flange and super duplex weld neck flange, super duplex threaded flange, super duplex screwed flange, etc.
All Chhajed products are manufactured under strict process control and monitored throughout the production process. They go through several checks to ensure that the product delivered is of finest quality!
Specification Schedule of Super Duplex 2507 Flanges
| Specifications |
ASTM A182 / ASME SA182 |
| Duplex Steel Flanges Standards |
ANSI/ ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flanges. |
| ASTM A182 Duplex Steel Flange HS Code |
Duplex Steel Flange HS Code : 7307 |
| Duplex Steel Flanges Standard DIN |
6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| Stainless Steel Duplex Flanges Standard ANSI |
Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS Manufacturer and supplier |
| Duplex Flanges Standard UNI |
6Bar 10Bar 16Bar 25Bar 40Bar |
| Duplex Stainless Flanges Standard JIS |
5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| ASME B16.5 Duplex Steel Flange size range |
1/2" (15 NB) to 48" (1200NB) DN10~DN5000 |
| Stainless Steel Duplex Flange Standard EN |
6Bar 10Bar 16Bar 25Bar 40Bar |
| Duplex Steel Pipe Flanges Test Certificates |
EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc |
| ASTM A182 Duplex Steel Flange supporting material |
Gasket, Ring Joint, Flange Bolts |
| ASTM A182 Duplex Steel Flanges Production technique |
- Forged, Heat treated and machined
|
| Duplex Flanges Main Types |
Forged / Threaded / Screwed / Plate |
| Most common types of Duplex Steel Flanges |
- Weld Neck Ring Flanges (WNRF)
- Slip-On Ring Flanges (SORF)
- Blind Ring Flanges (BLRF)
- Socket Weld Ring Flanges (SWRF)
- Threaded Ring Flanges
- Lap Joint Ring Flanges (LJRF)
- Ring Type Joint Flanges (RTJF)
|
| Duplex Flange Connect Type/ Flange Face Type |
Raised Face (RF), Ring Type Joint (RTJ), Large Male-Female (LMF), Flat Face (FF), Small Male-Female (SMF), Lap-Joint Face (LJF), Small Tongue, Large Tongue & Groove Manufacturer and supplier |
| Duplex Steel Flange Test |
X-ray detector, Direct-reading Spectrograph, Hydrostatic testing machine, UI trasonic flaw detector, Magnetic particle detector |
| Equipment for DSS Flange |
Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Duplex Flanges Origin |
Indian / West Europe / Japan / USA / Korean (Strictly No china) |
| Duplex Flanges Special design |
As per your drawing
AS, ANSI, BS, DIN and JIS
15 NB (1/2") to 200 NB (8")
Equal and Reducing Configurations
|
| Key markets and industries for Duplex Steel Flanges |
- Bitumen upgraders.
- Heavy oil refineries.
- Nuclear power (mostly seamless).
- Petrochemicals and acids.
|
| Duplex Steel Flanges Standard |
- ANSI Flange
- JIS/ KS Flange
- API 6A Flange
- ASME Flange
- DIN Flange
- EN1092-1 Flange
- UNI Flange
- BS4504 Flange
- GB Flange
- AWWA C207 Flange
- GOST Flange
- PSI Flange
|
| Duplex Steel Flanges Application |
- Duplex Stainless Flange used to Connect Pipe & Tubes in Shipbuilding Petroleum, Gas, Chemical, Construction, Power, Metallurgy,etc
|
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 |
Chemical Properties of Super Duplex 2507 Flanges
| Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
N |
Fe |
| Super Duplex S32750 |
0.030 max |
1.20 max |
0.80 max |
0.035 max |
0.020 max |
24.00 – 26.00 |
3.00 – 5.00 |
6.00 – 8.00 |
0.24 – 0.32 |
58.095 min |
| Super Duplex S32760 |
0.05 max |
1.00 max |
1.00 max |
0.030 max |
0.010 max |
24.00 – 26.00 |
3.00 – 4.00 |
6.00 – 8.00 |
0.20 – 0.30 |
57.61 min |
Mechanical Properties of Super Duplex 2507 Flanges
| Grades |
Density (g/cm 3) |
Density (lb/in 3) |
Melting Point (°C) |
Melting Point (°F) |
| Super Duplex S32750/S32760 |
7.8 |
0.281 |
1350 |
2460 |
Equivalent Standard of Super Duplex 2507 Flanges
| STANDARD |
WERKSTOFF NR. |
UNS |
| Super Duplex S32750/S32760 |
1.4410 |
S32750 / S32760 |
Basic Type of Super Duplex Flanges
ASTM A182 Super Duplex Flanges
AISI Super Duplex Flanges
ANSI Super Duplex RTJ Flanges
ASME B16.5 Super Duplex Flanges
Super Duplex Header Flanges
ANSI B16.5 Super Duplex Forged Pipe Flanges
DN15 Super Duplex Flat Welding Flange
ASME B16.5 Super Duplex Threaded Flanges
Super Duplex KF Blank Flanges
Super Duplex Pipe Flanges
Super Duplex Threaded Flanges
Super Duplex Blind Flanges
