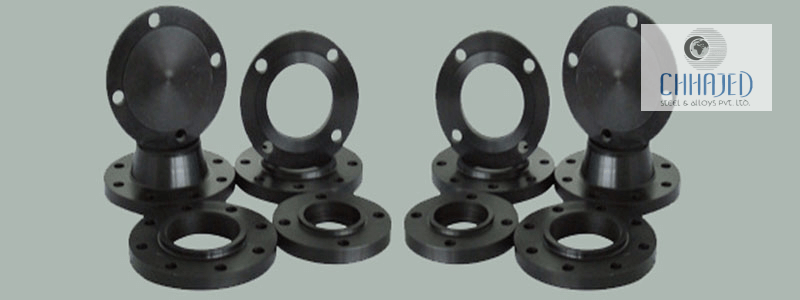

ASTM A181 Carbon Steel Flanges
ASTM A181 Carbon Steel Flanges Manufacturers in Mumbai, ASTM A181 Carbon Steel Flanges Suppliers in Mumbai, ASTM A181 Carbon Steel Flanges Stockists in Mumbai, ASTM A181 Carbon Steel Flanges Exporters in Mumbai
ASME SA 181 gr 1 can be stressed and break under pressure and it is less likely to occur than with other types of steel. It is applicable to a wide range of industries and sectors. It has increased strength. It a181 gr 1 makes it particularly effective in applications where strength is needed. A181 flange is successful in pressure bearing and sealing pipe ends in heavy pressure applications like hydraulic system since it has a maximum bending stress at the center. SA-181-70 has carbon content up to 2.1% by weight. It has the same basic composition of iron and carbon, steel types tend to have a variety of alloying elements.
It and as the carbon element content increases, it becomes harder and stronger after heat treatment. On the contrary, it becomes less ductile. Whereas in without heat treatment it reduces its weldability. ASTM A181 class 60 and ASTM A181 class 70. The forging made to this specification are limited to maximum weight of 10000 Lb. The various types of ASTM A181 Flange available are weld neck flange, slip on flange, long weld neck flange, threaded flange, socket weld flange, orifice flange, spectacle blind flange, reducing flange, etc. They are material specification for carbon steel nonstandard as-forged pipeline components such as flanges, pipe fittings, rings, valve component, round bars and many other forging parts, used for industrial piping applications.
All Chhajed products are manufactured under strict process control and monitored throughout the production process. They go through several checks to ensure that the product delivered is of finest quality!
Specification Schedule of ASTM A181 Carbon Steel Flanges
| Material |
ASTM A181 Class 70 CL1/CL2
|
| Size Range |
1/2″ (15 NB) to 48″ (1200NB), ASME B16.47 Flanges size range: 26″ to 60″ |
| Typical manufacturing specifications: |
A181 Grade 60 , ASME A181 Grade 60, MSS SP 44, ASME B16.47, ASME B16.5, NORSOK L-005, API 6A |
| A181 CL70 Carbon Steel Flanges Manufacturing Dimensions |
ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Standard |
ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc |
| Class / Pressure |
150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Flange Face Type |
Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ), LJ, FM , R.T.J , R.J and so on |
| ANSI A181 CL70 Carbon Steel Flanges |
150 to 2500 |
| Size |
1/2"-24" |
| AWWA A181 CL70 Carbon Steel Flanges |
classes B, D, E, F / Size: 3"-144" |
| ANSI B16.5 ASTM A181 Class 70 Carbon Steel Flanges pressure classes |
150, 300, 400, 600, 900, 1500 and 2500 for ASME B16.5 |
| ANSI B16.47 ASTM A181 Class 70 Carbon Steel Flanges pressure classes |
75, 150, 300, 400, 600, 900 for ASME B16.47 |
Chemical Properties of ASTM A181 Carbon Steel Flanges
| Carbon |
Manganese |
Phosphorus |
Sulphur |
Silicon |
| 0.35 max |
1.10 max |
0.050 max |
0.050 max |
0.10 – 0.35 |
Mechanical Properties of ASTM A181 Carbon Steel Flanges
| Tensile Strength, ksi |
Yield Strength, ksi |
Elongation, % |
Reduction of Area, % |
| 60 min |
30 min |
22 min |
35 min |
Basic Type of Carbon Steel Flanges
ASTM A181 Carbon Steel Plate Flanges
Carbon Steel ASTM A181 Blind Flanges
ASTM A181 Carbon Steel Lap Joint Flanges
ANSI B16.5 Carbon Steel Flanges
Precision Large Carbon Steel Flanges
ANSI B16.5 Weld Neck Flanges
ASTM A181 Carbon Steel Slip On Flanges
ASTM A181 Carbon Steel Forged Flanges
ANSI B16.5 ASTM A181 Blind Flanges
