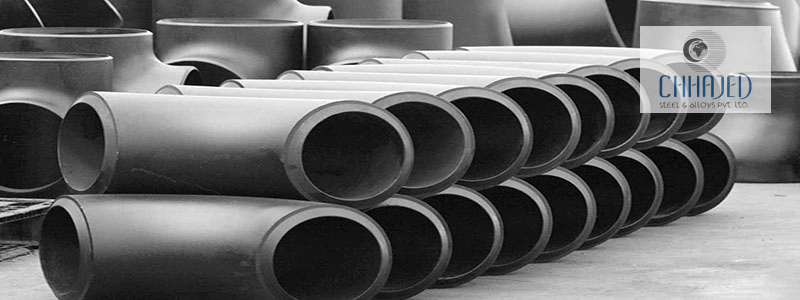

ASTM A420 Gr WPL6 Carbon Steel Pipe Fittings
ASTM A420 Gr WPL6 Carbon Steel Pipe Fittings Manufacturers in Mumbai, ASTM A420 Gr WPL6 Carbon Steel Pipe Fittings Suppliers in Mumbai, ASTM A420 Gr WPL6 Carbon Steel Pipe Fittings Stockists in Mumbai, ASTM A420 Gr WPL6 Carbon Steel Pipe Fittings Exporters in Mumbai
ASTM A420 WPL6 Material is not allowed to use in the construction of power boiler. ASTM A420 WPL6 buttweld pipe fittings is a weldable pipe fitting that allows flow direction to change, to branch off, reduce pipe size or attach additional equipment. It is manufactured in accordance of ANSI / ASME B16.9. LTCS A420 WPL6 Weld Fittings is compatible with ASTM A333 Grade 6 Pipe and ASTM A350 LF2 Class 1 Flange. It has excellent drawing, high ductility, forming, and spinning properties, which is further typically non – magnetic and becomes slightly magnetic when cold worked. It is largely used in industries such as shipbuilding, offshore, water system, oil field, etc.
A420 WPL6 Pipe Fittings is standard specification for piping fittings of wrought carbon steel and alloy steel for low-temperature service. It is specially used in low temperature conditions. It has excellent drawing, high ductility, forming, and spinning properties, which is further essentially non – magnetic and becomes slightly magnetic when cold worked.
All Chhajed products are manufactured under strict process control and monitored throughout the production process. They go through several checks to ensure that the product delivered is of finest quality!
Specification Schedule of ASTM A420 Gr WPL6 Carbon Steel Pipe Fittings
| A420 WPL6 Material Dimensions | ANSI/ASME B16.9, B16.9, MSS-SP-75 |
|---|---|
| LTCS Fittings Grade | A420 WPL6 |
| ASTM A420 WPL6 Specification & Standard | LTCS ASTM A420 WPL6 / WPL3 |
| LTCS Fittings Type | Seamless / Welded / Fabricated / A420 WPL6 Weld Fittings |
| LTCS Pipe Fittings Color | black |
| LTCS Material Size Range | ½" NB to 120" NB, Seamless ½" to 24", Welded ½" to 120", Two Joint / Two Halve Fittings 6" to 48" |
| LTCS Pipe Fittings Dimensions | ANSI/ASME B16.9, B16.28, MSS-SP-43. |
| LTCS Fittings types | Fittings, Pipe Fittings, Elbows, Tees, Reducers, Caps |
| Surface treatment | Sand Blasting, Sand Rolling |
| Applicable Standards for LTCS Pipe Fittings |
|
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Material ASTM A420 WPL6 Wall thickness | SCH10, SCH20, SCH30, STD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160, XXS available with NACE MR 01-75 |
| A420 Gr WPL6 Technics | BUTT WELD / FORGED |
| Types of LTCS Material | Reducer, Concentric Reducer, Elbows, Long Radius Elbow, Short Radius Elbow, Tee, Equal Tee, Reducing Tee, Cross, Bend, Long Radius Bends, Piggable Bends, Con Reducer, Ecc Reducer, Eccentric Reducer, Pipe End Caps |
| ASTM A420 WPL6 Weld Fittings Application & uses | Petroleum, chemical, power, gas, metallurgy, shipbuilding, etc |
| Seamless/ Welded ASTM A420 WPL6 Pipe Fittings 100% Radiography Tested | |
Chemical Composiion of ASTM A420 Gr WPL6 Carbon Steel Pipe Fittings
| Grade | Ni | Cu | Cr | Mo | V | Nb |
|---|---|---|---|---|---|---|
| WPL6(1)(2) | 0.4 | 0.4 | 0.3 | 0.12 | 0.08 | 0.02 |
| WPL9 | 1.60-2.24 | 0.75-1.25 | - | - | - | - |
Mechanical Composiion of ASTM A420 Gr WPL6 Carbon Steel Pipe Fittings
| Tensile Requirements | ASTM A420 WPL6 Fittings |
|---|---|
| Tensile Strength min, ksi [MPa] |
60-85[415-585] |
| Yield Strength min, ksi [MPa] |
35[240] |
Basic Type of ASTM A420 Gr WPL6 Carbon Steel Pipe Fittings
ASTM A420 Gr WPL6 Carbon Steel Pipe Fittings
Carbon Steel Weld Fittings
Carbon Steel Reducer
ANSI B16.5 Carbon Steel 5D Elbow
Precision Large Carbon Steel Tee Pipe Fittings
ANSI B16.5 ASTM A420 Gr WPL6 Carbon Steel Pipe Fittings
Carbon Steel A234 WPB Long Radius 90D Elbows
135 degree Union Carbon Steel Forged Pipe Fittings
90 DEG LR Elbow Seamless Carbon Steel Elbow
