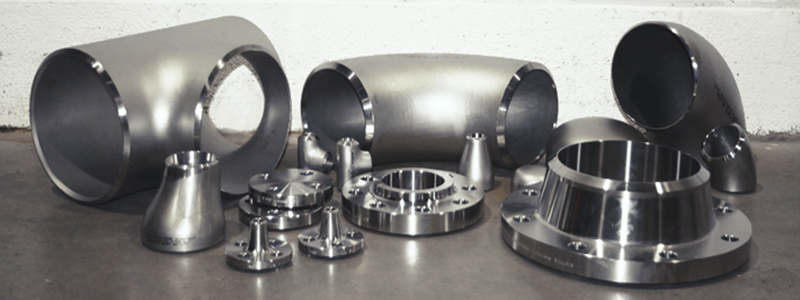

Stainless Steel Pipe Fittings
Stainless Steel Pipe Fittings Manufacturers in Mumbai, Stainless Steel Pipe Fittings Suppliers in Mumbai, Stainless Steel Pipe Fittings Stockists in Mumbai, Stainless Steel Pipe Fittings Exporters in Mumbai
Stainless Steel Seamless Pipe Fittings is manufactured by extruding the metal to the desired length and shape. Stainless Steel Buttweld Fittings is essential part of industrial piping system in order to change the direction. Its dimension and tolerances are defined as per ASME B16.9 standard. It is consists of concentric & eccentric reducer, long radius elbow and tees. ASME B16.9 SS Welded Pipe Fittings change in direction of flow in piping system, connect pipes and equipment, gives branches, access and takes off for additional. They are joining components that make possible the assembly of valves, pipes and equipment onto the piping system. In any piping system it compliment pipe flanges and allows.
Stainless Steel Buttweld Elbow does not have any joint through-out and there is no welding or joints. Long radius 45° elbow changes the direction of flow by 45°. Short radius 90° elbow is same as LR 90° except for the measurement between ends of elbow to center line is 1 x NPS. Austenitic SS Fittings it contains 16% to 30% chromium and 2% to 20% nickel for formability, enhanced surface quality, increase corrosion and wear resistance. They are classified in 200 and 300 series of stainless steel grade. It is useful in industries such as chemical, food Processing, fertilizers, power generation, oil & gas, sugar, gas processing, and petrochemical, etc. It used in piping work and consist of reducer, elbow, union, coupling, tee, adapter, valve, olet, cross, plug, nipple, expansion joints etc.
All Chhajed products are manufactured under strict process control and monitored throughout the production process. They go through several checks to ensure that the product delivered is of finest quality!
Specification Schedule of Stainless Steel Pipe Fittings
| ASME B16 9 Stainless Steel Fittings Type | Straight, Seamless / Welded / Fabricated Stainless Fittings | ||||
|---|---|---|---|---|---|
| Mss Sp-43 Stainless Steel Fitting Designation | A 403 Pipe Fittings, SA 403 Fittings | ||||
| Stainless Steel Welded Fittings Dimension Standard | Manufacturing as per ASME/ANSI B16.9, ASME B16.25, ASME B16.28, ASME B16.49, MSS-SP-43 Fittings | ||||
| Stainless Steel Seamless Fittings Value Added Service | Polish (Electro & Commercial) Heat Treatment Annealed & Pickled, Sand Blasting Machining Etc. |
||||
| Stainless Steel Seamless Pipe Fittings Standard | ASTM, ASME | ||||
| Fabricated Stainless Steel Fittings Size | 1/2 Inch to 48 Inch | ||||
| Two Joint / Two Halve 304 Butt weld Fittings Size | 6" to 48" | ||||
| End Connection | Butt Weld | ||||
| Stainless Steel Welded Pipe Fittings Thickness | Sch 5s Fittings, Sch 10s Fittings, Sch 40s Fittings, Sch 80s Fittings, Sch 160s Fittings, Sch XXS |
||||
| Producing A403 Stainless Steel Pipe Fittings in form of : |
|
||||
| Our stockyard in India | Mumbai, Chennai, Kolkata, Ahmedabad Gujarat | ||||
| SS Pipe Fittings Other Form | A403 Stainless Steel Dairy Fitting Supplier in india | ||||
| Sch 80 Stainless Steel Pipe Fittings Test Certificate |
With Manufacturer Test Certificate Under Third Party Inspection |
||||
| SS Pipe Fittings Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Pipe Bend Supplier | ||||
| Stainless Steel Pipe Fittings Manufacturers in India Specification: | ASME: ANSI B16.9, ANSI B16.28, ASME B16.25, MSS-SP-43, DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, EN: EN10253-1, EN10253-2 | ||||
| SS Fittings Procure Raw Materials from | Japanese Mills, European Mills, US Mills, Korean Mills | ||||
| Stainless Steel Weld Fittings Prices Specialize |
Long Bend with Radius – R = 3D, 5D & 10D |
||||
|
Seamless/ Welded Pipe Fittings 100% Radiography Tested SS Forged Fittings Manufacturer in India, ANSI B16.11 Socket Weld and Threaded Fittings Suppliers |
|||||
|
Stainless steel elbow manufacturers Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report as per client specification. |
|||||
Chemical Properties of Stainless Steel Pipe Fittings
| ASTM Grade | Carbon | Manganese | Silicon | Sulfur | Phospherous | Chromium | Nickel | Molybdenum | Other |
|---|---|---|---|---|---|---|---|---|---|
| 304 | 0.08 max | 2.00 max | 0.75 max | 0.030 max | 0.045 max | 18.0-20.0 | 8.0 11.0 | - | - |
| 316 | 0.08 max | 2.00 max | 0.75 max | 0.030 max | 0.045 max | 16.0-18.0 | 10.0 14.0 | 2.0 3.0 | - |
| 317L | 0.035 max | 2.00 max | 0.75 max | 0.030 max | 0.045 max | 18.0-20.0 | 11.0 14.0 | 3.0 4.0 | - |
| 310 S | 0.08 max | 2.00 max | 1.5 max | 0.030 max | 0.045 max | 24.0-26.0 | 19.0 22.0 | 3.0 4.0 | - |
| 347 H | 0.04 0.10 | 2.00 max | 0.75 max | 0.030 max | 0.045 max | 17.0- 19.0 | 9.0 13.0 | - | 10C(Cb+Ta)<1.10% |
| 321 | 0.08 | 2.00 max | 0.75 max | 0.030 max | 0.045 max | 17.0-20.0 | 9.0 12.0 | - | 5C 0.70% |
Mechanical Properties of Stainless Steel Pipe Fittings
| Grade | Elongation | Density | Tensile Strength | Yield Strength (0.2%Offset) | Melting Point |
|---|---|---|---|---|---|
| SS 202 | 40 % | 8.0 g/cm3 | 515 MPa | 275 MPa | 1454 °C (2650 °F) |
| SS 303 | 50 % | 55% | Psi – 85,000 | Psi – 45,000 | Rb 180 |
| SS 304 | 40% | 8.0 g/cm3 | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 1400 °C (2550 °F) |
| SS 304L | 40% | 8.0 g/cm3 | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 1400 °C (2550 °F) |
| SS 316 | 35 % | 8.0 g/cm3 | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 1454 °C (2650 °F) |
| SS 316L | 40 % | 8.0 g/cm3 | 485 Min | 170 Min. | 1400 °C (2550 °F) |
Equivalent Standard of Stainless Steel Pipe Fittings
| UNS NO | Outokumpu | AISI | Werkstoff NO | ASTM NO |
|---|---|---|---|---|
| S31254 | 254SMO | 904L | 1.4547 | A276 |
| N08904 | 6Mo (Moly) | 1.4539 | A479 | |
| EN10272 | B677 | |||
| F44 |
Basic Type of Stainless Steel Pipe Fittings
WP316 SS Pipe Fittings
ASTM A403 WP304L SS Pipe Fittings
ANSI WP304 SS Socket Weld Fittings
SS WP316L Pipe Fittings
WP304L SS WNR 1.4301 Pipe Fittings
ASME SA 403 SS WP316 Pipe End Cap
WP304L SS Weld Pipe Fittings
SS WP304L 45 Degree Elbow Pipe Fittings
WP317L SS Pipe Coupling 150LB Fittings
WP321 SS 90 Degree Elbow Pipe Fittings
WP904L SS 1/2 OD Reducer
1/4 INCH NPT THREAD WP347H SS Male Adapter Fittings
