Stainless Steel Capillary Tubes, Stainless Steel Capillary Tubes Manufacturers, Stainless Steel Capillary Tubes Suppliers, Stainless Steel Capillary Tubes Stockists, Stainless Steel Capillary Tubes Exporters
Stainless Steel Capillary Tubes Manufacturers In India, Stainless Steel Capillary Tubes Suppliers In India, Stainless Steel Capillary Tubes Stockists In India, Stainless Steel Capillary Tubes Exporters In India
316 Stainless Steel Needle tubing and SS 304 Precision Tubing supplier in Mumbai
Stainless Steel Capillary Tubes Manufacturers in Mumbai, Stainless Steel Capillary Tubes Suppliers in Mumbai, Stainless Steel Capillary Tubes Stockists in Mumbai, Stainless Steel Capillary Tubes Exporters in Mumbai

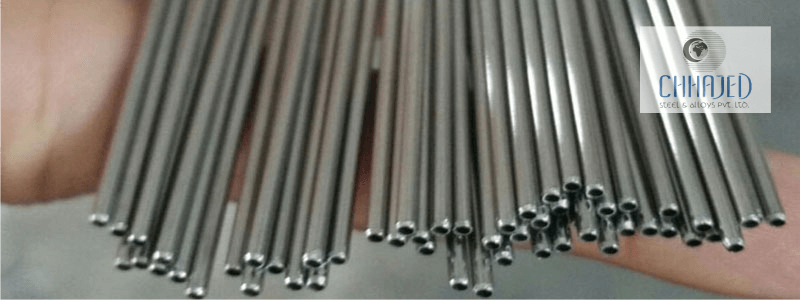

As an acclaimed enterprise of the industry, Chhajed Steel & Alloy Pvt Ltd is involved in offering a vast array of Stainless Steel Capillary Tubes as a manufacturer, exporter, stockiest and supplier to our domestic and global clients. Our Stainless Steel Capillary Tubes are being categorized by tight tolerances, and the inner surface of the tubes is free from grease, oil and other particles. Well, this makes sure that, for instance, an enhanced and even flow of gases and liquids from the sensor to the measuring instrument.
These tubes are used for several applications such as in Chromatography, Gas and liquid lines, etc. With respect to national and international quality of raw materials, we also offer these SS Capillary Tubes in customized sizes and thicknesses as per specific demands by our esteemed clients at market leading prices.
All Chhajed products are manufactured under strict process control and monitored throughout the production process. They go through several checks to ensure that the product delivered is of finest quality!
Specification Schedule of Stainless Steel Capillary Tubes
| Size Range |
0.35mm to 6.35mm OD in thickness ranging from 0.1mm to 1.2mm. |
| Thickness |
1mm to 20mm, SCH 5/5S, 10/10S, 20/20S, 40/40S, 80/80S, 120/120S, 160/160S as per ANSI B36.19/36.10 |
| Wall Thickness |
0.08 – 0.2 mm |
| Outside Diameter |
0.3 –12.0 mm |
| Specification |
ASME / ASTM A213, ASTM A688 / A688M - 08, ASTM A803 / A803M, ASTM A556 / A556M, ASME SA556, ASME SA688 |
| Material |
SS 304, SS 304L,SS 316,SS 316L |
| Finish |
Pickled, Polished, Bright Annealed, Electrolytic Polished |
| Form |
Round, Strait, Hydraulic etc. |
| Type |
As Welded, EFW, ERW, Seamless, Semi Seamless, Bead Removed |
| Mill Test Certificate |
EN10204 3.1 |
| Packing |
Sleeved, Ends Capped, Wooden Boxed |
Chemical Properties of Stainless Steel Capillary Tubes
| Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
N |
Ti |
Fe |
| T304 |
minimum |
|
|
|
|
|
18.0 |
|
8.0 |
|
|
|
| maximum. |
0.08 |
2.0 |
0.75 |
0.045 |
0.030 |
20.0 |
10.5 |
0.10 |
|
|
| T304L |
minimum |
|
|
|
|
|
18.0 |
|
8.0 |
|
|
|
| maximum. |
0.030 |
2.0 |
0.75 |
0.045 |
0.030 |
20.0 |
12.0 |
0.10 |
|
|
| T304H |
minimum |
0.04 |
|
|
|
|
18.0 |
|
8.0 |
|
|
|
| maximum |
0.010 |
2.0 |
0.75 |
0.045 |
0.030 |
20.0 |
10.5 |
|
|
|
| SS T310 |
|
0.015 maximum |
2 maximum |
0.015 maximum |
0.020 maximum |
0.015 maximum |
24.00 26.00 |
0.10 maximum |
19.00 21.00 |
54.7 min |
|
|
| SS T310S |
|
0.08 maximum |
2 maximum |
1.00 maximum |
0.045 maximum |
0.030 maximum |
24.00 26.00 |
0.75 maximum |
19.00 21.00 |
53.095 min |
|
|
| SS T310H |
|
0.04 0.10 |
2 maximum |
1.00 maximum |
0.045 maximum |
0.030 maximum |
24.00 26.00 |
|
19.00 21.00 |
53.885 min |
|
|
| T316 |
minimum |
|
|
|
|
|
16.0 |
2.03.0 |
10.0 |
|
|
|
| maximum. |
0.035 |
2.0 |
0.75 |
0.045 |
0.030 |
18.0 |
14.0 |
|
|
|
| T316L |
minimum |
|
|
|
|
|
16.0 |
2.03.0 |
10.0 |
|
|
|
| maximum. |
0.035 |
2.0 |
0.75 |
0.045 |
0.030 |
18.0 |
14.0 |
|
|
|
| T316TI |
|
0.08 maximum |
10.00 14.00 |
2.0 maximum |
0.045 maximum |
0.030 maximum |
16.00 18.00 |
0.75 maximum |
2.00 3.00 |
|
|
|
| T317 |
|
0.08 maximum |
2 maximum |
1 maximum |
0.045 maximum |
0.030 maximum |
18.00 20.00 |
3.00 4.00 |
|
|
|
57.845 min |
| SS T317L |
|
0.035 maximum |
2.0 maximum |
1.0 maximum |
0.045 maximum |
0.030 maximum |
18.00 20.00 |
3.00 4.00 |
11.00 15.00 |
|
|
57.89 min |
| SS T321 |
|
0.08 maximum |
2.0 maximum |
1.0 maximum |
0.045 maximum |
0.030 maximum |
17.00 19.00 |
|
9.00 12.00 |
0.10 maximum |
5(C+N) 0.70 maximum |
|
| SS T321H |
|
0.04 0.10 |
2.0 maximum |
1.0 maximum |
0.045 maximum |
0.030 maximum |
17.00 19.00 |
|
9.00 12.00 |
0.10 maximum |
4(C+N) 0.70 maximum |
|
| T347/ T347H |
|
0.08 maximum |
2.0 maximum |
1.0 maximum |
0.045 maximum |
0.030 maximum |
17.00 20.00 |
|
9.0013.00 |
|
|
|
| T410 |
minimum |
|
|
|
|
|
11.5 |
|
|
|
|
|
| maximum |
0.15 |
1.0 |
1.00 |
0.040 |
0.030 |
13.5 |
|
0.75 |
|
|
|
| T446 |
minimum |
|
|
|
|
|
23.0 |
|
|
0.10 |
|
|
| maximum |
0.2 |
1.5 |
0.75 |
0.040 |
0.030 |
30.0 |
|
0.50 |
0.25 |
|
|
| T904L |
minimum |
|
|
|
|
|
19.0 |
4.00 |
23.00 |
0.10 |
|
|
| maximum |
0.20 |
2.00 |
1.00 |
0.045 |
0.035 |
23.0 |
5.00 |
28.00 |
0.25 |
|
|
Mechanical Properties of Stainless Steel Capillary Tubes
| Grade |
Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
| T304/ T304L |
8.0 g/cm3 |
1400 °C (2550 °F) |
Psi 75000 , MPa 515 |
Psi 30000 , MPa 205 |
35 % |
| T304H |
8.0 g/cm3 |
1400 °C (2550 °F) |
Psi 75000 , MPa 515 |
Psi 30000 , MPa 205 |
40 % |
| T310 / T310S / T310H |
7.9 g/cm3 |
1402 °C (2555 °F) |
Psi 75000 , MPa 515 |
Psi 30000 , MPa 205 |
40 % |
| 306/ 316H |
8.0 g/cm3 |
1400 °C (2550 °F) |
Psi 75000 , MPa 515 |
Psi 30000 , MPa 205 |
35 % |
| T316L |
8.0 g/cm3 |
1399 °C (2550 °F) |
Psi 75000 , MPa 515 |
Psi 30000 , MPa 205 |
35 % |
| T317 |
7.9 g/cm3 |
1400 °C (2550 °F) |
Psi 75000 , MPa 515 |
Psi 30000 , MPa 205 |
35 % |
| T321 |
8.0 g/cm3 |
1457 °C (2650 °F) |
Psi 75000 , MPa 515 |
Psi 30000 , MPa 205 |
35 % |
| T347 |
8.0 g/cm3 |
1454 °C (2650 °F) |
Psi 75000 , MPa 515 |
Psi 30000 , MPa 205 |
35 % |
| T904L |
7.95 g/cm3 |
1350 °C (2460 °F) |
Psi 71000 , MPa 490 |
Psi 32000 , MPa 220 |
35 % |
Equivalent Standard of Stainless Steel Capillary Tubes
| Stainless Steel Type |
ASTM |
Equivalent Standard |
| UNS |
Grads (TP) |
EN / Din |
Afnor (NF) |
JIS |
| Austenitic |
S30400 |
304 |
1.4301 |
Z 6 CN 18.09 |
SUS 304 |
| |
S30403 |
304L |
1.4306 |
Z 2 CN 18.10 |
SUS 304L |
| |
S31600 |
316 |
1.4401 |
Z 6 CND 17.11 |
SUS 316 |
| |
S31603 |
316L |
1.4404 |
Z 2 CND 17.12 |
SUS 316L |
| |
S31635 |
316Ti |
1.4571 |
Z 2 CND 17.12 |
- |
| |
S32100 |
321 |
1.4541 |
Z 6 CNT 18.10 |
SUS 321 |
| |
S34700 |
347 |
1.455 |
Z 6 CNNb 18.10 |
SUS 347 |
| |
S30409 |
304H |
1.4948 |
Z 6 CN 19.10 |
SUS 304H |
| |
S31609 |
316H |
1.4919 |
Z 10 CND 18.10 |
SUS 316H |
| |
S32109 |
321H |
1.4941 |
Z 10 CND 18.10 |
SUS 321H |
| Ferritic |
S40500 |
405 |
1.4002 |
Z 6 CAL 13 |
SUS 405 |
| |
S41000 |
410 |
1.4002 |
Z 12 C 13 |
SUS 410 |
| |
S43000 |
430 |
1.4016 |
Z 10 C 17 |
SUS 430 |
| Duplex |
S31803 |
- |
1.4462 |
Z 2 CND 22.06 |
- |
| |
S32750 |
2507 |
1.4410 |
Z 5 CND 20.12 |
- |
| |
S32760 |
- |
1.4501 |
- |
- |
