Alloy Steel T5 Tubes, Alloy Steel T5 Tubes Manufacturers, Alloy Steel T5 Tubes Suppliers, Alloy Steel T5 Tubes Stockists, Alloy Steel T5 Tubes Exporters
Alloy Steel T5 Tubes Manufacturers In India, Alloy Steel T5 Tubes Suppliers In India, Alloy Steel T5 Tubes Stockists In India, Alloy Steel T5 Tubes Exporters In India

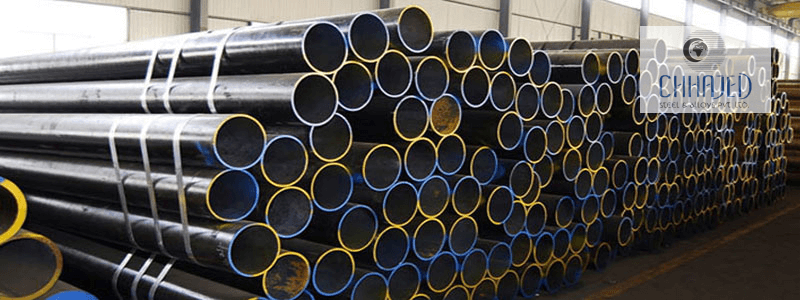

Alloy Steel T5 Tubes
Alloy Steel T5 Tubes Manufacturers in Mumbai, Alloy Steel T5 Tubes Suppliers in Mumbai, Alloy Steel T5 Tubes Stockists in Mumbai, Alloy Steel T5 Tubes Exporters in Mumbai
ASME SA213 T5 Tube is a tube that does not have any welding seam. It does not have any welding joint and it is a solid metal tube with each end connected to another tube. SA213 T5 Tubing has threads either at the both ends or one end and can be threaded to the end of another hollow tube. While in operation it tends to be solid and overcome various industrial forces and pressures. The process of Alloy Steel T5 Seamless Tubing manufacturing does not include any welding due to which it is considered to be stronger and more reliable.
ASME SA213 Grade T5 has several elements such as silicon, molybdenum, nickel, chromium, manganese, vanadium. This alloying element helps to increase wear resistance, toughness and strength. SA213 T5 boiler tube is required to operate power devices at high efficiencies which guarantee their safe and long term operation. It is specially manufactured to withstand high pressure and temperature.
All Chhajed products are manufactured under strict process control and monitored throughout the production process. They go through several checks to ensure that the product delivered is of finest quality!
Specification Schedule of Alloy Steel T5 Tubes
| Specifications |
ASTM A/ASME SA 213, A691 |
| Dimensions |
ASTM, ASME, and API |
| Size |
1/2″ OD up to 5″ OD, customs diameter also available |
| Outer Diameter |
6.2500mm; WT:1-200mm |
| Schedule |
SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Type |
Seamless |
| Form |
Round Pipes, Custom Pipes, Square Pipes, Rectangular Pipe, "U" Shape, Hydraulic Pipes |
| Length |
Single Random, Double Random & Cut Length. |
| End |
Plain End, Beveled End, Treaded |
Chemical Properties of Alloy Steel T5 Tubes
| Grade |
C≤ |
Mn |
P≤ |
S≤ |
Si≤ |
Mo |
| T5 |
0.15 |
0.30~0.60 |
0.025 |
0.025 |
1.0-2.0 |
0.45~0.65 |
| T5b |
0.15 max |
0.30~0.60 |
0.025 |
0.025 |
1.0-2.0 |
0.45~0.65 |
| T5c |
0.12 max |
0.30~0.60 |
0.025 max |
0.025 max |
0.50 max |
0.45~0.65 |
Mechanical Properties of Alloy Steel T5 Tubes
| Grade |
Tensile Strength, MPa |
Yield Strength, MPa |
Elongation, % |
Hardness, HB |
| T5 |
415 min |
205 min |
30 min |
179 max |
| T5b |
415 min |
205 min |
30 min |
179 max |
| T5c |
415 min |
205 min |
30 min |
163 max |
Equivalent Standard of Alloy Steel T5 Tubes
| Grade |
UNS |
Steel Number |
Trade Name |
| T5 |
K41545 |
1.7362 |
5Cr-1/2Mo |
Basic Type of Alloy Steel T5 Tubes
Sa 209 T5 Alloy Steel Boiler Tube
Astm A209 Grade T5 Superheater Tube
Astm A209 Gr T5 Boiler Tube
